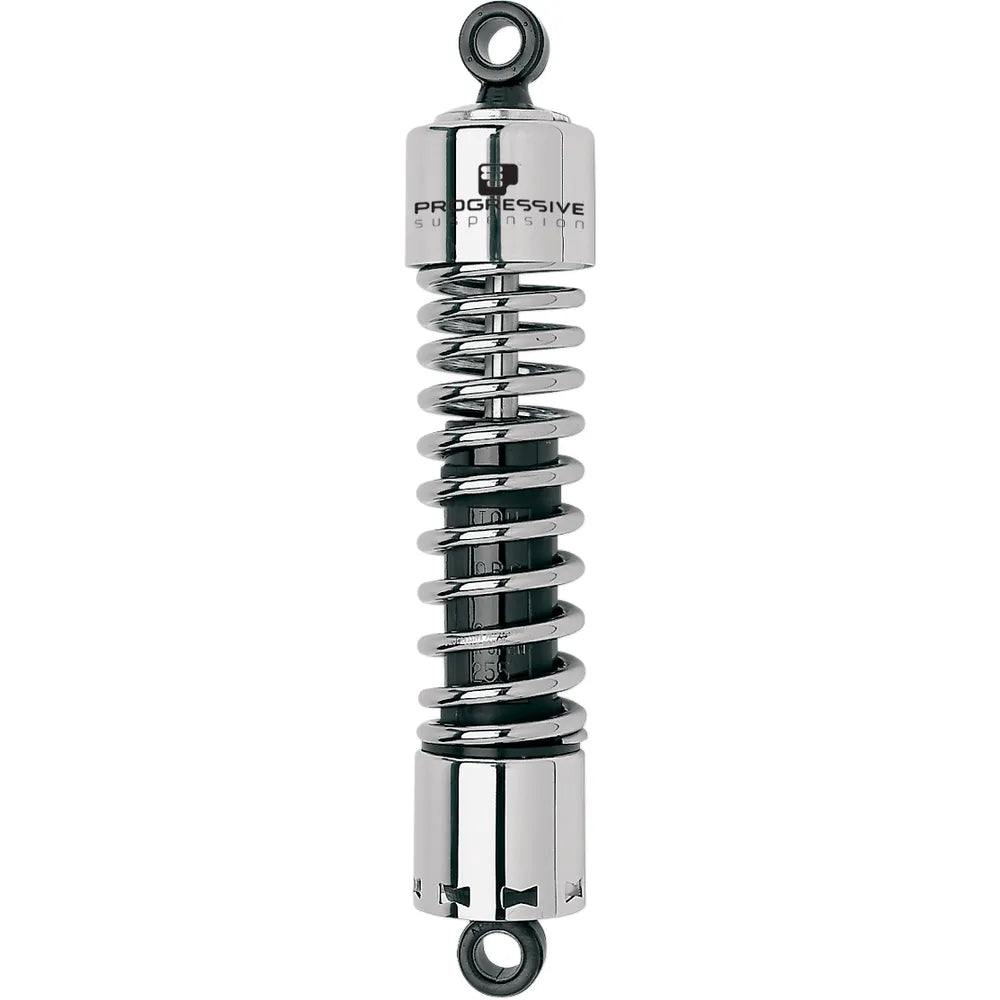

412 Series Shock - 11" - Standard - Black - FXR

Caracteristicas:

Designed specifically for Harley models

The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance

A five position cam style spring load preload adjuster lets you easily dial in your ride

Some or all shocks listed have TüV approval. Refer to most recent TüV certificate for current listing

All shocks are measured center-of-eyelet to center-of-eyelet.

When installing shocks on 1986-2015 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.

A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.

A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.

Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.

Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.

Peso: 11.15
Alto: 3.39
Largo: 17.04
Ancho: 6.76
Aditamentos:

Low Rider Sport FXRS-SP : 1990-1992-1988-1993-1991-1989-1987

Low Rider Custom FXLR : 1987-1989-1992-1991-1993-1988-1990-1994

Low Rider FXRS : 1991-1990-1987-1992-1993-1988-1989

Low Rider Convertible FXRS-CONV : 1993-1991-1990-1992

Super Glide II FXR : 1983-1982

Super Glide FXR : 1991-1988-1989-1987-1993-1990-1992-1994

Low Glide FXRS : 1984

Sport Glide FXRT : 1991-1993-1984-1992-1983-1990-1989-1988-1987

Low Rider Chrome FXRC : 1987

Super Glide II FXRS : 1982-1983

Disc Glide FXRDG : 1984

1200 Custom XLC : 1998-2000-2001-2003-1997-1996-1999-2002

1200 Sport XLS : 1997-1998-1999-2001-2002-1996-2000-2003

883 Custom XLC : 2001-2003-2000-2002-1999

883 Roadster XLR : 2003-2002

Sportster 1200 XLH : 1993-1994-1995-1998-2003-1989-1990-1991-1992-1997-2002-1996-2001-1988-1999-2000

Sportster 883 XLH : 1988-1989-1996-2000-2003-1986-1987-1994-1995-1999-2001-1990-1991-1992-1997-2002-1993-1998

883 Hugger XLH : 1987-1996-1999-2001-1989-1994-1997-1988-1995-1998-2000-2002-2003-1992-1993-1991-1990

Sportster 1100 XLH : 1986-1987

883 Deluxe XLH : 1991-1992-1989-1990-1994-1987-1995-1986-1988-1993

Roadster 1000 XLS : 1984-1983-1979-1981-1980-1982-1985

Sportster 1000 XLH : 1982-1980-1985-1984-1979-1983-1981

Sportster 1000 XR : 1985-1983-1984

Sportster 750 XR : 1984-1980-1979-1985-1983-1981-1982

1200 Custom EFI XLC : 2003-2002

Sportster 1000 XLX : 1984-1985-1983

Café Racer XLCR : 1978-1979-1977

Sportster 1000 XLCH : 1979

Specs:Color/Finish: Chrome
Damping Method: Gas Charged
Model: 412 Series with Covers
Riding Style: Street
Mounting Position: Rear
Progressive Spring Rate: 1.60 kg/mm - 2.30 kg/mm
Type: Coilover Monotube
Color/Finish: Black
Material: Steel
Product Name: Shock Absorber
Progressive Spring Rate: 90.00 lb/in - 130.00 lb/in
Reservoir Location: Internal
Units: Pair
Adjustment Style: Automatic
Duty: Standard
Extended Length: 11.00"
Spring Type: Single Progressive Rate
