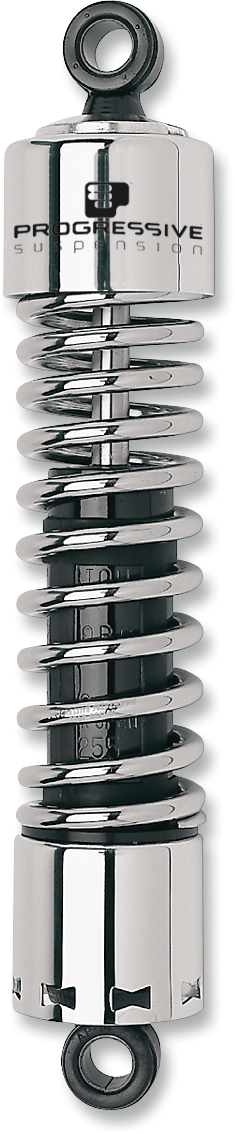

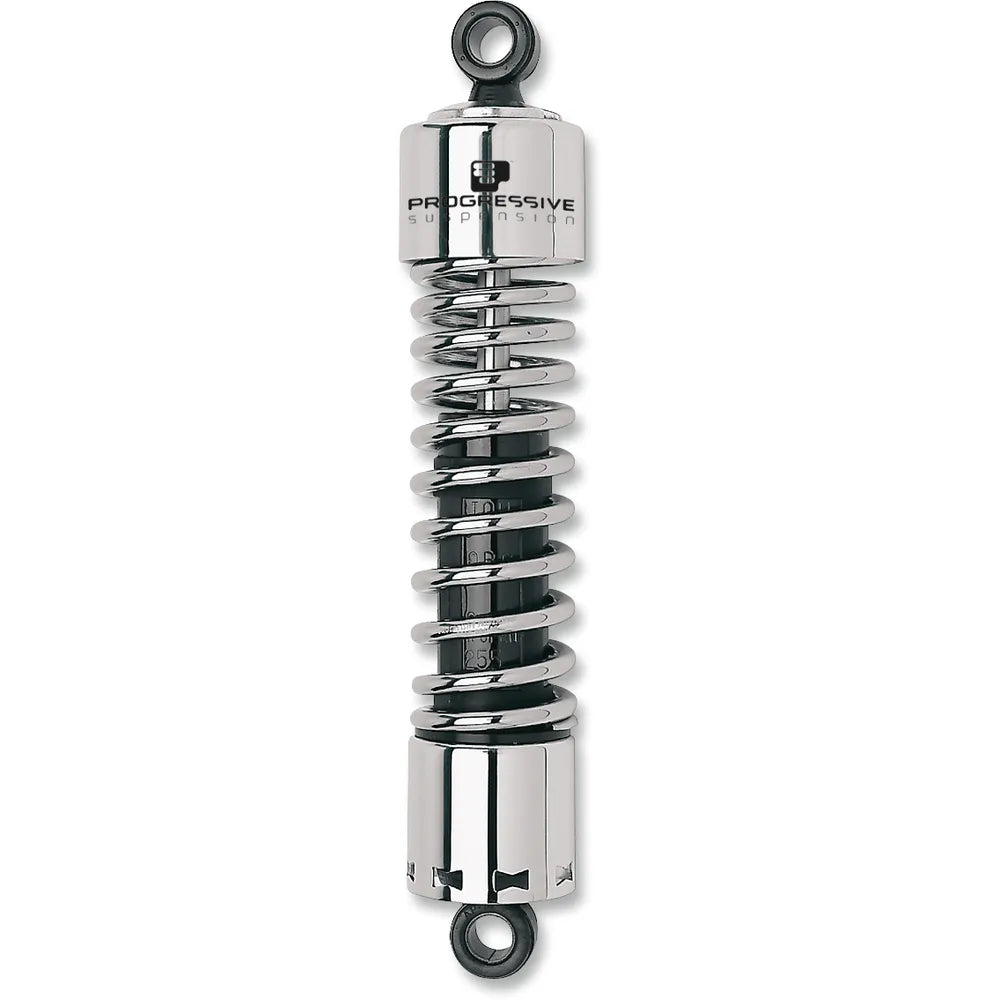

412 Series Shock - 11" - Standard - Chrome - XL - '04-'19

Caracteristicas:

Designed specifically for Harley models

The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance

A five position cam style spring load preload adjuster lets you easily dial in your ride

Some or all shocks listed have TüV approval. Refer to most recent TüV certificate for current listing

All shocks are measured center-of-eyelet to center-of-eyelet.

When installing shocks on 1986-2015 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.

A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.

A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.

Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.

Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.

Peso: 9.35
Alto: 3.34
Largo: 16.92
Ancho: 6.69
Aditamentos:

883 Roadster XLR : 2005-2006-2007

1200 Custom EFI XLC : 2009-2010-2012-2014-2007-2013-2015-2008-2011-2016-2017-2019-2018-2005-2004-2006

883 SuperLow XLL : 2013-2011-2012-2015-2014-2017-2016-2019-2018

1200 Roadster EFI XLR : 2007-2008-2006

883 Low XLL : 2006-2005

1200 Low XLL : 2006

1200 Roadster XLR : 2006-2004-2005

883 Custom XLC : 2005-2004-2006

Sportster Forty-Eight XLX : 2013-2014-2010-2011-2012-2015-2017-2016-2019-2018

883 Custom EFI XLC : 2008-2007-2009-2006-2004-2005

1200 Nightster XLN : 2008-2007-2011-2012-2010-2009

Iron 883 XLN : 2012-2014-2011-2013-2009-2015-2010-2016-2017-2018-2019

Sportster 1200 XL 50 : 2007

Sportster Seventy-Two XLV : 2015-2013-2012-2014-2016

1200 Custom XLC : 2005-2006-2004

883 XL : 2005-2004-2006

883 Low EFI XLL : 2009-2010-2008-2007-2006

1200 Low EFI XLL : 2010-2008-2009-2007-2011-2006

SuperLow 1200 XLT : 2014-2015-2016-2017

883 Roadster EFI XLR : 2007-2006-2005

883 EFI XL : 2008-2007-2009

1200 Roadster XLCX : 2017-2016-2018-2019

Iron 1200 XLNS : 2018-2019

Sportster 1200 X XR : 2010-2011-2012-2009

1200 XLCP : 2013-2015-2011-2017-2014-2012-2016

Sportster 1200 XR : 2009-2012-2011-2010

Sportster Forty-Eight Special XLXS : 2018-2019

Specs:Extended Length: 279.40 mm
Material: Steel
Model: 412 Series without Covers
Product Name: Shock Absorber
Progressive Spring Rate: 1,60 kg/mm - 2,30 kg/mm (90 lb/in - 130 lb/in)
Units: Pair
Extended Length: 279,40 mm (11,00")
Mounting Position: Rear
Progressive Spring Rate: 90.00 lb/in - 130.00 lb/in
Type: Coilover Monotube
Adjustment Style: Automatic
Color/Finish: Chrome
Extended Length: 11.00"
Reservoir Location: Internal
Spring Type: Single Progressive Rate
Damping Method: Gas Charged
Duty: Standard
Progressive Spring Rate: 1.60 kg/mm - 2.30 kg/mm
Riding Style: Street
