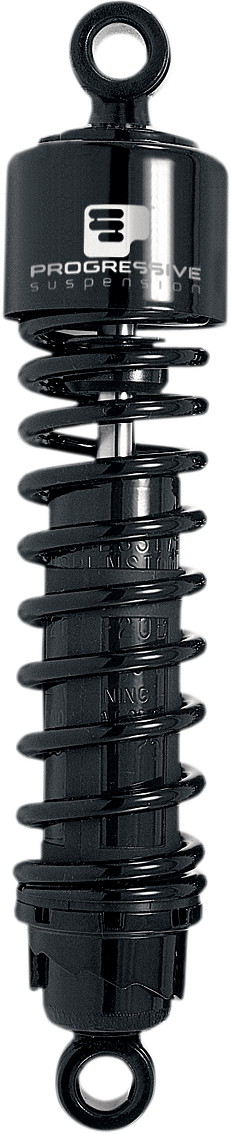

412 Series Shock - 12.5" - Heavy Duty - Black - H-D

Caracteristicas:

Designed specifically for Harley models

The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance

A five position cam style spring load preload adjuster lets you easily dial in your ride

Some or all shocks listed have TüV approval. Refer to most recent TüV certificate for current listing

All shocks are measured center-of-eyelet to center-of-eyelet.

When installing shocks on 1986-2015 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.

A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.

A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.

Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.

Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.

Peso: 9.5
Alto: 4.03
Largo: 16.98
Ancho: 6.78
Aditamentos:

Super Glide FXR : 1988-1990-1992-1989-1987-1993-1994-1991

Low Rider Convertible FXRS-CONV : 1993-1990-1991-1992

Sport Glide FXRT : 1993-1989-1992-1987-1988-1991-1990-1983-1984

Low Rider Sport FXRS-SP : 1990-1993-1991-1988-1989-1992-1987

Low Rider Chrome FXRC : 1987

Roadster 1000 XLS : 1979-1982-1980-1981-1985-1984-1983

1200 Custom XLC : 1998-2000-2001-2003-1997-1996-1999-2002

1200 Sport XLS : 1997-1996-2000-1998-1999-2001-2002-2003

883 Custom XLC : 2003-2000-2002-1999-2001

Sportster 1200 XLH : 1993-1994-1995-1998-2003-1996-2001-1989-1990-1991-1992-1997-2002-1988-1999-2000

883 Roadster XLR : 2003-2002

Sportster 883 XLH : 1986-1987-1994-1995-1993-1998-1990-1991-1992-1997-2002-1988-1989-1996-2000-2003-1999-2001

883 Hugger XLH : 1988-1987-1990-1989-1992-1991-1994-1997-1995-1998-2000-2002-2003-1993-1996-1999-2001

Sportster 1100 XLH : 1986-1987

883 Deluxe XLH : 1986-1988-1993-1989-1990-1987-1995-1994-1991-1992

Sportster 1000 XLH : 1979-1981-1983-1980-1982-1984-1985

Sportster 1000 XLX : 1984-1983-1985

Sportster 1000 XR : 1983-1984-1985

Café Racer XLCR : 1978-1977-1979

Sportster 1000 XLCH : 1979

Low Rider FXRS : 1993-1988-1992-1989-1991-1990-1987

Low Rider Custom FXLR : 1993-1988-1989-1992-1991-1990-1994-1987

Super Glide II FXR : 1982-1983

Low Glide FXRS : 1984

Sportster 750 XR : 1980-1979-1983-1981-1982-1985-1984

1200 Custom EFI XLC : 2002-2003

Specs:Mounting Position: Rear
Type: Coilover Monotube
Damping Method: Gas Charged
Duty: Heavy Duty
Model: 412 Series without Covers
Progressive Spring Rate: 1.35 kg/mm - 2.15 kg/mm
Riding Style: Street
Color/Finish: Black
Extended Length: 12.50"
Material: Steel
Product Name: Shock Absorber
Units: Pair
Adjustment Style: Automatic
Progressive Spring Rate: 75.00 lb/in - 120.00 lb/in
Reservoir Location: Internal
Spring Type: Single Progressive Rate
