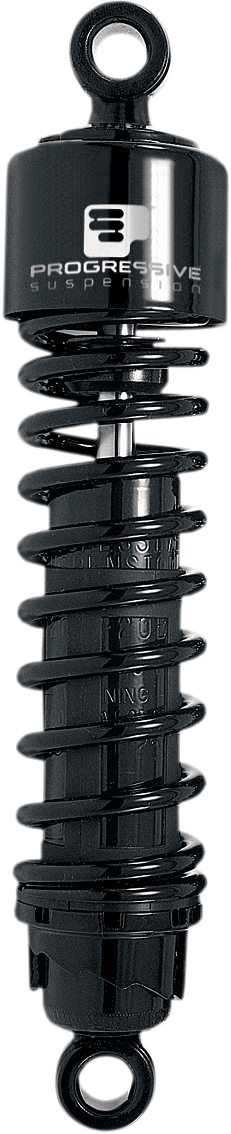

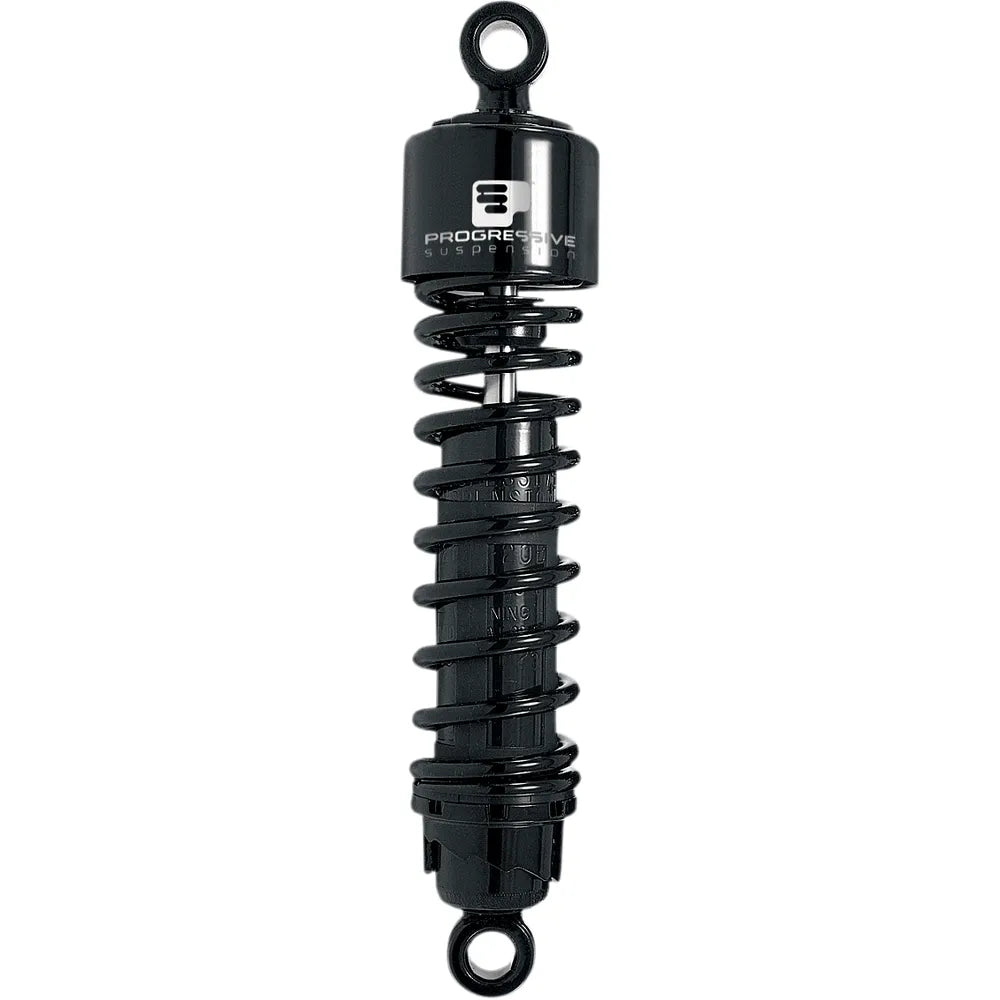

412 Series Shock - 12.5" - Heavy Duty - Black - H-D0772191

Caracteristicas:

Designed specifically for Harley models

The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance

A five position cam style spring load preload adjuster lets you easily dial in your ride

Some or all shocks listed have TüV approval. Refer to most recent TüV certificate for current listing

All shocks are measured center-of-eyelet to center-of-eyelet.

When installing shocks on 1986-2015 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.

A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.

A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.

Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.

Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.

Peso: 10.35
Alto: 3.46
Largo: 17.04
Ancho: 6.85
Aditamentos:

Wide Glide EFI FXDWGI : 2016-2012-2007-2010-2011-2013-2005-2014-2008-2006-2004-2015-2017-2002-2003-2001-2000

Super Glide Custom FXDC : 2005

Fat Bob FXDF : 2016-2008-2014-2011-2012-2009-2010-2013-2015-2017

Street Bob FXDB : 2016-2012-2007-2006-2015-2008-2010-2009-2011-2013-2014-2017

Wide Glide FXDWG : 2002-2000-2004-1998-2005-2003-1995-1993-1996-1999-2001-1994-1997-2006

Low Rider FXDL : 2003-2000-1995-1999-2004-2001-1997-2005-2002-1994-1993-1998-1996-2006

Super Glide FXD : 2005-2003-2004-1996-2002-2001-1999-2000-1995-1998-1997-2006

Super Glide EFI FXDI : 2008-2004-2006-2010-2005-2007-2009

Dyna Convertible FXDS-CONV : 2000-1997-1995-1996-1999-1998

Super Glide FXD35 : 2006

Super Glide Custom EFI FXDCI : 2014-2009-2005-2008-2012-2011-2013-2007-2010-2006

Low Rider EFI FXDL : 2009-2007-2008-2015-2016-2017-2004-2014-2006-2005

Dyna Sturgis FXDB : 1991

Dyna Daytona FXDB : 1992

Dyna Glide Custom FXDC : 1992

Switchback FLD : 2013-2015-2012-2016-2014

Low Rider S FXDLS : 2016-2017

Super Glide Sport FXDX : 1999

Wide Glide FXDWG2 : 2001

Wide Glide FXDWG3 : 2002

Specs:Progressive Spring Rate: 4.80 kg/mm - 5.65 kg/mm
Reservoir Location: Internal
Type: Coilover Monotube
Adjustment Style: Automatic
Mounting Position: Rear
Spring Type: Single Progressive Rate
Duty: Heavy Duty
Material: Steel
Color/Finish: Black
Damping Method: Gas Charged
Extended Length: 12.60"
Model: 412 Series without Covers
Product Name: Shock Absorber
Progressive Spring Rate: 270.00 lb/in - 315.00 lb/in
Riding Style: Street
Units: Pair
