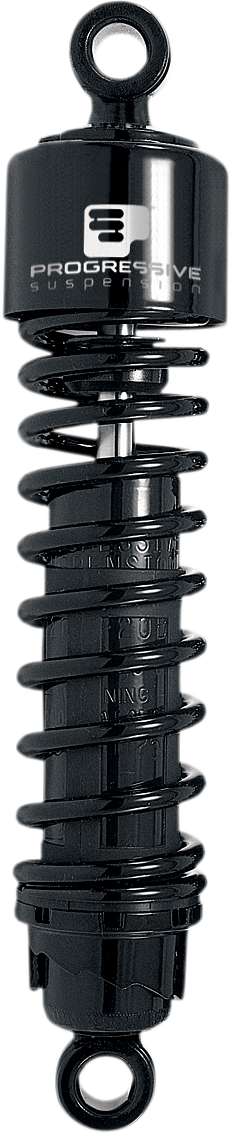

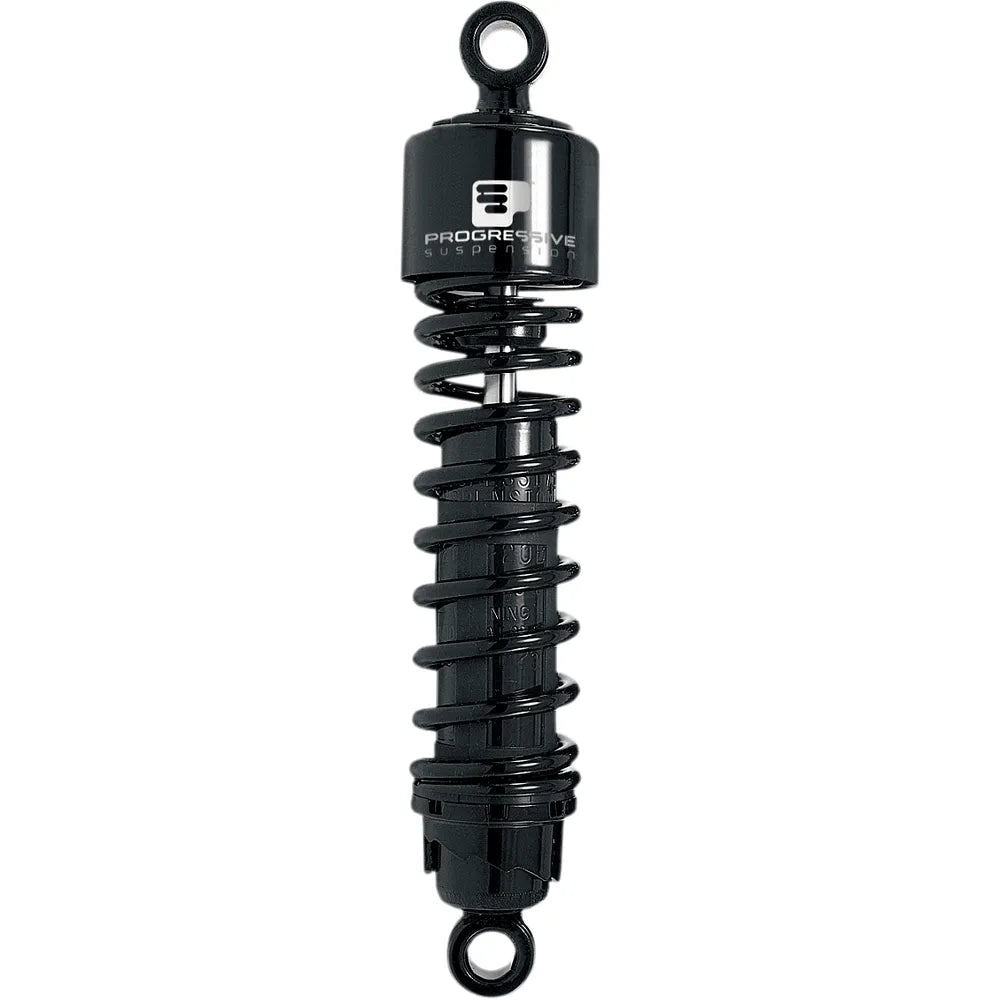

412 Series Shock - 12" - Standard - Black - H-D55509

Caracteristicas:

Designed specifically for Harley models

The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance

A five position cam style spring load preload adjuster lets you easily dial in your ride

Some or all shocks listed have TüV approval. Refer to most recent TüV certificate for current listing

All shocks are measured center-of-eyelet to center-of-eyelet.

When installing shocks on 1986-2015 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.

A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.

A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.

Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.

Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.

Peso: 9.16
Alto: 3.34
Largo: 16.92
Ancho: 6.69
Aditamentos:

Electra Glide Ultra Classic EFI FLHTCUI : 1997-1999-2001-2002-2004-1998-1996-2005-1995-2000-2003

1200 Custom XLC : 2002-1996-1999-1998-2000-2001-2003-1997

1200 Sport XLS : 1997-1998-1999-2001-2002-1996-2000-2003

883 Custom XLC : 2003-2000-2002-1999-2001

Sportster 1200 XLH : 1989-1988-1999-2000-1993-1994-1996-2001-1990-1991-1992-1997-2002-1995-1998-2003

883 Roadster XLR : 2002-2003

Sportster 883 XLH : 1986-1987-1994-1990-1991-1992-1997-2002-1988-1989-1996-2000-2003-1995-1999-2001-1993-1998

883 Hugger XLH : 1987-1990-1988-1991-1989-1992-1996-1993-1995-1998-2000-2002-2003-1999-2001-1994-1997

883 Deluxe XLH : 1989-1986-1990-1994-1988-1993-1987-1995-1991-1992

Sportster 1000 XLH : 1983-1979-1981-1980-1982-1984-1985

Sportster 1100 XLH : 1986-1987

Café Racer XLCR : 1978-1977-1979

Sportster 1000 XLX : 1983-1985-1984

Sportster 1000 XLCH : 1979

Electra Glide Ultra Classic FLHTCU : 1990-1992-1997-1994-1989-1993-1996-1999-1995-1998-1991-2000-2001-2002-2004-2003-2005

Electra Glide Standard FLHT : 2003-2001-1997-2005-2000-2004-1998-1996-2002-1995-1999-1983-1985-1986-1987-1984

Tour Glide Classic FLTC : 1990-1994-1982-1988-1985-1992-1987-1989-1983-1980-1991-1993-1986-1984-1981

Road King FLHR : 2000-1997-2002-2001-1998-1999-1996-2005-1995-1994-2003-2004

Electra Glide Classic EFI FLHTCI : 1996-2004-2001-2003-2000-2005-1999-1998-2002-1997-1995

Electra Glide Sport FLHS : 1992-1991-1993-1989-1988-1990-1987-1981-1980-1982

Road King Classic EFI FLHRC : 2002-2000-2004-2005-1998-2001-1999-2003-1996-1995-1997

Roadster 1000 XLS : 1981-1980-1983-1979-1984-1982-1985

Electra Glide Classic FLHTC : 1994-1990-1992-1999-1989-1993-1998-1987-2004-1983-1988-1985-1996-1995-1984-1986-1991-2005-2003-2000-1997-2001-2002

Tour Glide FLT : 1980-1983-1981-1982-1986-1985-1984

Road Glide FLTR : 1999-2000-2001-1998-2002-2003-2005-2004

Road Glide EFI FLTR : 2003-1998-2000-1999-2001-2002-2004-2005

Tour Glide Ultra Classic FLTCU : 1993-1989-1990-1992-1994-1991-1996-1995

Tour Glide Ultra Classic EFI FLTCU : 1996

Road King Custom FLHRS : 2005-2004

Road King EFI FLHR : 2003-2005-2004-2002-1997-1996-1998-1999-2000-2001-1995

Road King Custom EFI FLHRS : 2005-2004

Electra Glide Standard EFI FLHTI : 2003-2004-2005-2001-2000-2002

Screamin' Eagle Road Glide FLTRSE-I2 : 2001

Screamin' Eagle Road Glide FLTRSE-I : 2000

Electra Glide Police FLHTP : 1983-1985-1986-1992-1993-2005-1990-1994-1996-1999-2004-1987-1989-1995-2001-2002-2003-1984-1988-1991-1997-1998-2000

Electra Glide Police FLHTPI : 1996-1998-2001-2000-2002-2003-1995-1997-1999-2004-2005

Screamin' Eagle Road King FLHRSE-I2 : 2003

Sportster 750 XR : 1985-1983-1981-1982-1984-1980-1979

Screamin' Eagle Electra Glide FLHTCSE2 : 2005

Sportster 1000 XR : 1984-1985-1983

1200 Custom EFI XLC : 2002-2003

Electra Glide Special FLHX : 1985-1984

Electra Glide Classic FLHC : 1980-1981

Electra Glide FLH : 1985

Screamin' Eagle Electra Glide FLHTCSE : 2004

Screamin' Eagle Road King FLHRSE-I : 2002

Low Rider Custom FXLR : 1990-1994-1989-1992-1991-1993-1988-1987

Low Rider Convertible FXRS-CONV : 1992-1991-1990-1993

Low Rider Sport FXRS-SP : 1987-1988-1993-1991-1989-1990-1992

Low Rider FXRS : 1989-1992-1986-1993-1988-1991-1990-1987

Super Glide FXR : 1993-1990-1992-1994-1986-1987-1991-1988-1989

Sport Glide FXRT : 1989-1988-1987-1991-1986-1984-1992-1990-1985

Specs:Progressive Spring Rate: 90.00 lb/in - 130.00 lb/in
Type: Coilover Monotube
Color/Finish: Black
Damping Method: Gas Charged
Duty: Standard
Extended Length: 12.00"
Product Name: Shock Absorber
Reservoir Location: Internal
Riding Style: Street
Units: Pair
Material: Steel
Model: 412 Series without Covers
Adjustment Style: Automatic
Mounting Position: Rear
Progressive Spring Rate: 1.60 kg/mm - 2.30 kg/mm
Spring Type: Single Progressive Rate
