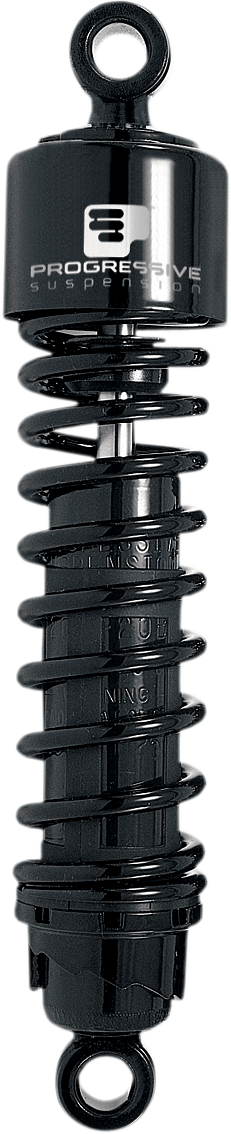

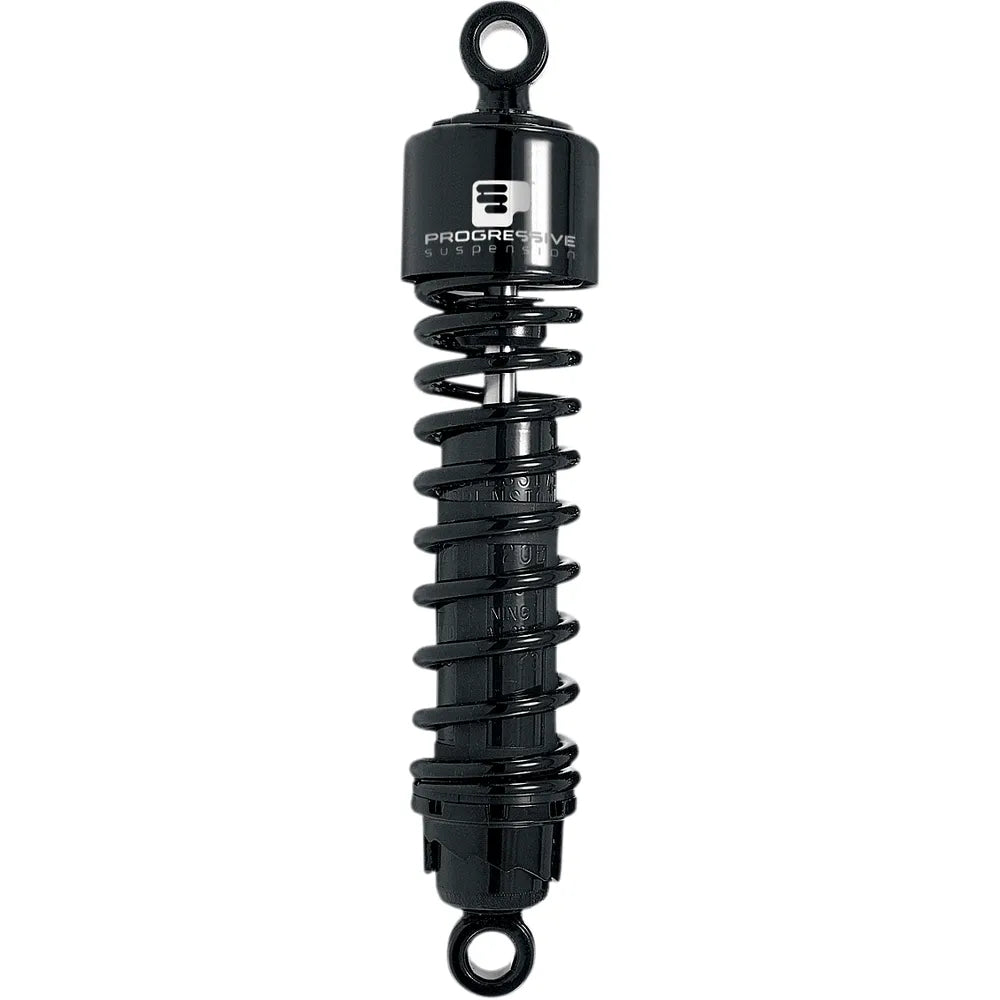

412 Series Shock - 13.5" - Heavy Duty - Black - H-D

Caracteristicas:

Designed specifically for Harley models

The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance

A five position cam style spring load preload adjuster lets you easily dial in your ride

Some or all shocks listed have TüV approval. Refer to most recent TüV certificate for current listing

All shocks are measured center-of-eyelet to center-of-eyelet.

When installing shocks on 1986-2015 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.

A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.

A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.

Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.

Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.

Peso: 9.8
Alto: 3.99
Largo: 16.95
Ancho: 6.68
Aditamentos:

Low Rider Sport FXRS-SP : 1990-1993-1988-1991-1992-1989-1987

Super Glide FXR : 1990-1992-1993-1994-1988-1989-1987-1991

Low Rider Convertible FXRS-CONV : 1990-1992-1993-1991

Sport Glide FXRT : 1990-1993-1991-1988-1987-1989-1992-1984-1983

Low Rider Chrome FXRC : 1987

Roadster 1000 XLS : 1984-1982-1985-1983-1979-1980-1981

1200 Custom XLC : 1997-1996-1999-1998-2000-2001-2003-2002-2004-2005-2006

1200 Sport XLS : 1998-1997-1996-2000-2003-1999-2001-2002

883 Custom XLC : 1999-2000-2002-2003-2001-2005-2006-2004

883 Roadster XLR : 2002-2003-2006-2007

Sportster 1200 XLH : 1988-1999-2000-1993-1994-1995-1998-2003-1989-1990-1991-1992-1997-2002-1996-2001

Sportster 883 XLH : 1993-1998-1988-1989-1996-2000-2003-1986-1987-1994-1995-1999-2001-1990-1991-1992-1997-2002

883 Hugger XLH : 1993-1995-1998-2000-2002-2003-1994-1997-1996-1988-1991-1999-2001-1987-1990-1989-1992

883 Deluxe XLH : 1989-1990-1994-1986-1988-1993-1987-1995-1991-1992

Sportster 1000 XLH : 1983-1979-1981-1980-1982-1984-1985

Sportster 1000 XLX : 1984-1983-1985

Sportster 1000 XR : 1983-1984-1985

Sportster 1000 XLCH : 1979

Café Racer XLCR : 1977-1978-1979

Sportster 1100 XLH : 1986-1987

Low Rider Custom FXLR : 1989-1992-1991-1993-1988-1987-1990-1994

Low Rider FXRS : 1992-1993-1988-1991-1990-1987-1989

Sportster 750 XR : 1984-1983-1981-1982-1980-1979-1985

1200 Custom EFI XLC : 2003-2002-2009-2010-2012-2014-2016-2018-2019-2008-2011-2004-2005-2006-2007-2013-2015-2017

883 Custom EFI XLC : 2008-2004-2005-2007-2009-2006

1200 Roadster XLCX : 2017-2018-2016-2019

1200 Nightster XLN : 2008-2007-2010-2009-2011-2012

1200 Roadster EFI XLR : 2007-2008-2006

1200 Roadster XLR : 2006-2005-2004

Sportster Seventy-Two XLV : 2015-2014-2012-2016-2013

Sportster Forty-Eight XLX : 2013-2014-2019-2016-2018-2010-2011-2012-2015-2017

Sportster 1200 XL 50 : 2007

883 EFI XL : 2007-2008-2009

1200 Low EFI XLL : 2009-2007-2011-2008-2010-2006

883 XL : 2006-2004-2005

883 Low EFI XLL : 2007-2010-2008-2006-2009

883 Low XLL : 2005-2006

SuperLow 1200 XLT : 2016-2015-2014-2017

Sportster 1200 XR : 2009-2012-2010-2011

Sportster Forty-Eight Special XLXS : 2019

Iron 1200 XLNS : 2019

Super Glide II FXR : 1982-1983

Low Glide FXRS : 1984

Iron 883 XLN : 2010-2017-2018-2013-2009-2015-2016-2019-2011-2012-2014

883 Roadster EFI XLR : 2007-2006

Specs:Damping Method: Gas Charged
Mounting Position: Rear
Reservoir Location: Internal
Riding Style: Street
Type: Coilover Monotube
Adjustment Style: Automatic
Spring Type: Single Progressive Rate
Progressive Spring Rate: 1.35 kg/mm - 2.15 kg/mm
Color/Finish: Black
Duty: Standard
Extended Length: 13.50"
Material: Steel
Model: 412 Series without Covers
Product Name: Shock Absorber
Progressive Spring Rate: 75.00 lb/in - 120.00 lb/in
Units: Pair
