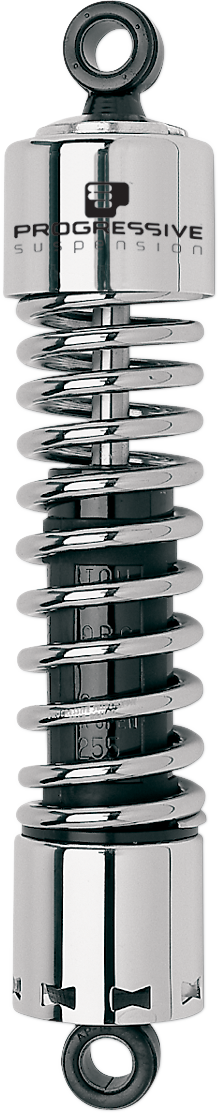

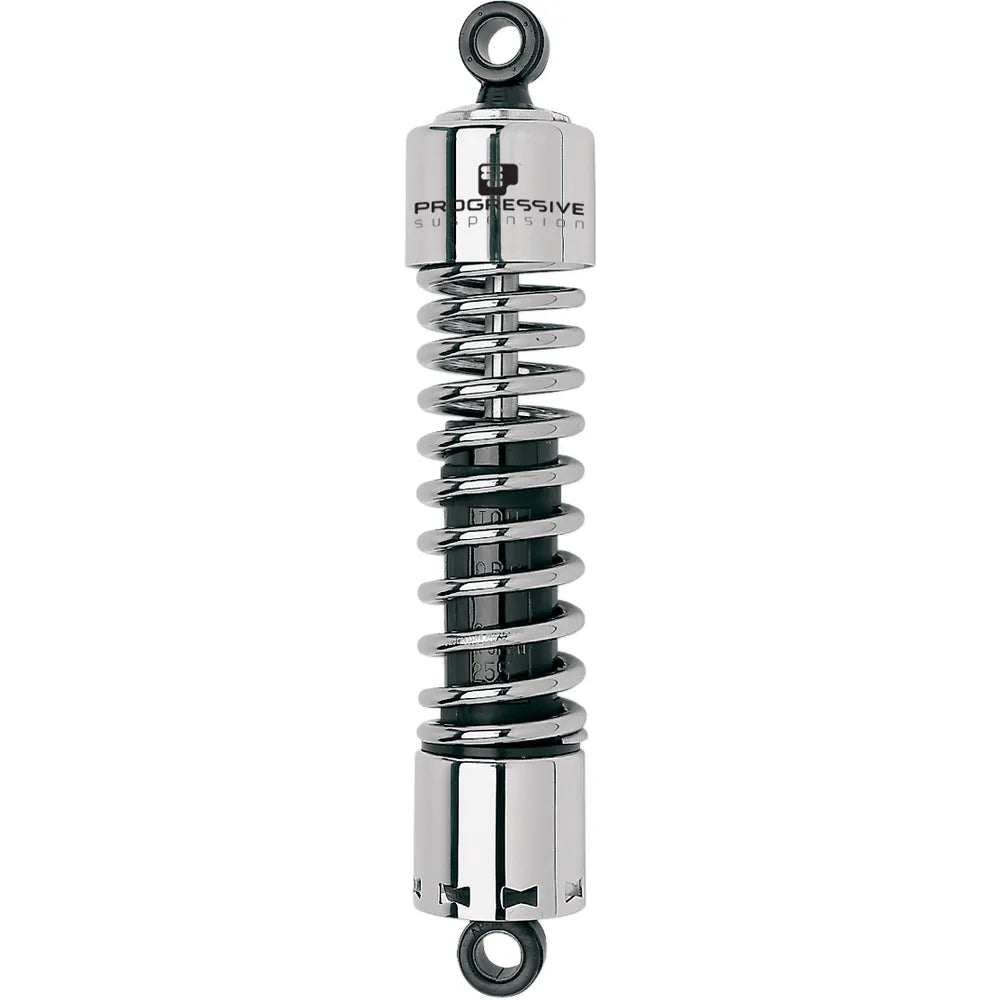

412 Series Shock - 13.5" - Standard - Chrome

Caracteristicas:

Designed specifically for Harley models

The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance

A five position cam style spring load preload adjuster lets you easily dial in your ride

Some or all shocks listed have TüV approval. Refer to most recent TüV certificate for current listing

All shocks are measured center-of-eyelet to center-of-eyelet.

When installing shocks on 1986-2015 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.

A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.

A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.

Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.

Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.

Peso: 9.56
Alto: 3.34
Largo: 16.92
Ancho: 6.69
Aditamentos:

Sportster 900 XLCH : 1961-1959-1970-1967-1962-1964-1969-1968-1965-1960-1971-1963-1966-1958-1957

Sportster 1000 XLCH : 1973-1976-1978-1974-1972-1975-1977

Sportster 900 XLH : 1968-1971-1969-1970-1967-1962-1959-1966-1963-1960-1957-1964-1965-1961-1958

Sportster 1000 XLH : 1973-1978-1974-1975-1972-1977-1976

Sportster 1000 XLT : 1978-1977

Sportster 900 XL : 1960-1968-1958-1962-1957-1964-1961-1963-1970-1971-1967-1966-1959-1965-1969

Sportster 750 XR : 1972

Specs:Adjustment Style: Automatic
Duty: Standard
Extended Length: 13.50"
Spring Type: Single Progressive Rate
Model: 412 Series without Covers
Mounting Position: Rear
Progressive Spring Rate: 2.90 kg/mm - 3.40 kg/mm
Type: Coilover Monotube
Color/Finish: Black
Material: Steel
Product Name: Shock Absorber
Progressive Spring Rate: 160.00 lb/in - 190.00 lb/in
Units: Pair
Color/Finish: Chrome
Damping Method: Gas Charged
Reservoir Location: Internal
Riding Style: Street
