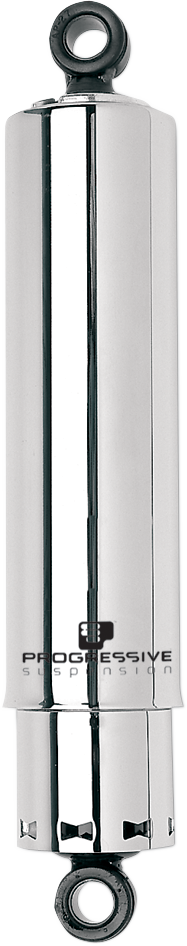

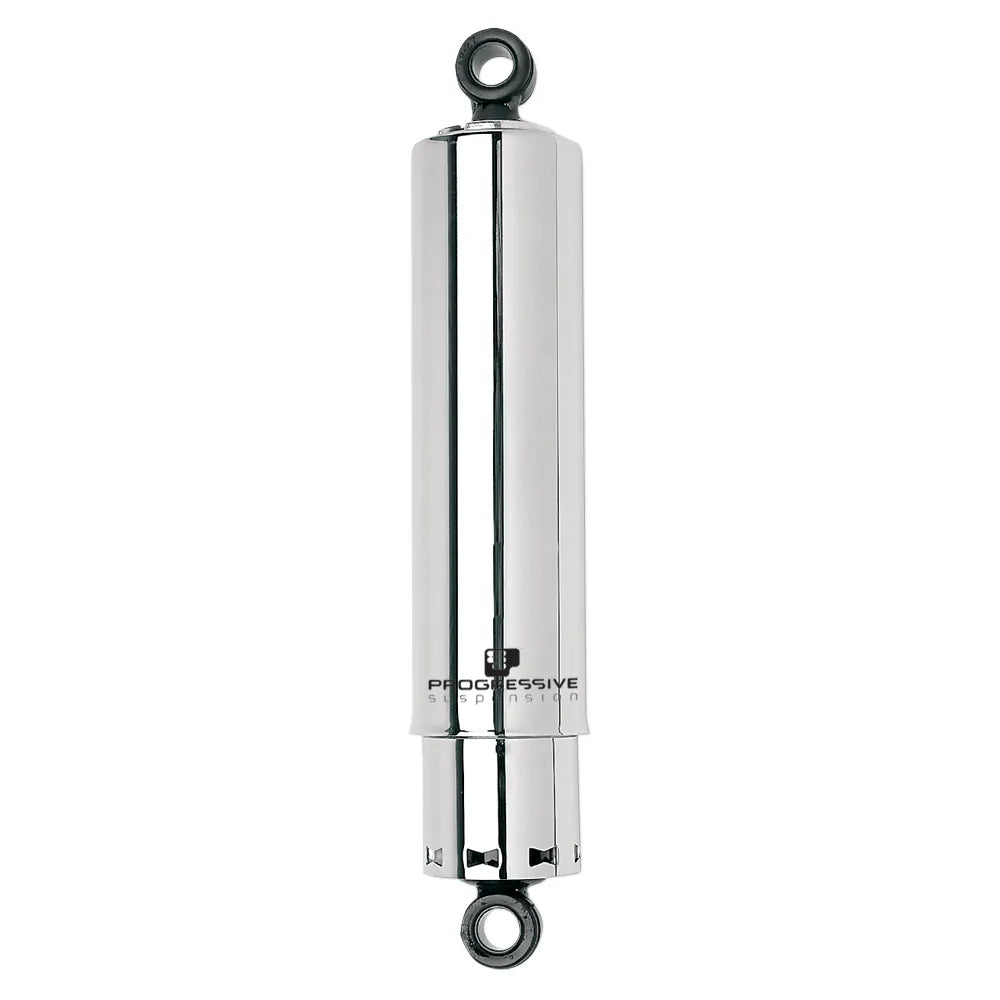

412 Series Shock - 13.5" - Standard - Chrome - H-D

Caracteristicas:

Designed specifically for Harley models

The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance

A five position cam style spring load preload adjuster lets you easily dial in your ride

Some or all shocks listed have TüV approval. Refer to most recent TüV certificate for current listing

All shocks are measured center-of-eyelet to center-of-eyelet.

When installing shocks on 1986-2015 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.

A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.

A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.

Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.

Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.

Peso: 16.69
Alto: 3.34
Largo: 16.92
Ancho: 6.69
Aditamentos:

Duo Glide FL : 1958-1961-1964-1962-1959-1963-1960

Electra Glide FL : 1969-1967-1972-1965-1971-1966-1970-1968

Duo Glide FLH : 1963-1958-1961-1959-1962-1960-1964

1200 Super Glide FX : 1971-1972

1200 Electra Glide FLH : 1966-1969-1968-1967-1971-1965-1972-1970

Specs:Mounting Position: Rear
Progressive Spring Rate: 4.80 kg/mm - 5.65 kg/mm
Reservoir Location: Internal
Type: Coilover Monotube
Adjustment Style: Automatic
Color/Finish: Chrome
Extended Length: 13.50"
Model: 412 Series with Covers
Spring Type: Single Progressive Rate
Damping Method: Gas Charged
Duty: Standard
Product Name: Shock Absorber
Progressive Spring Rate: 270.00 lb/in - 315.00 lb/in
Riding Style: Street
Material: Steel
Units: Pair
