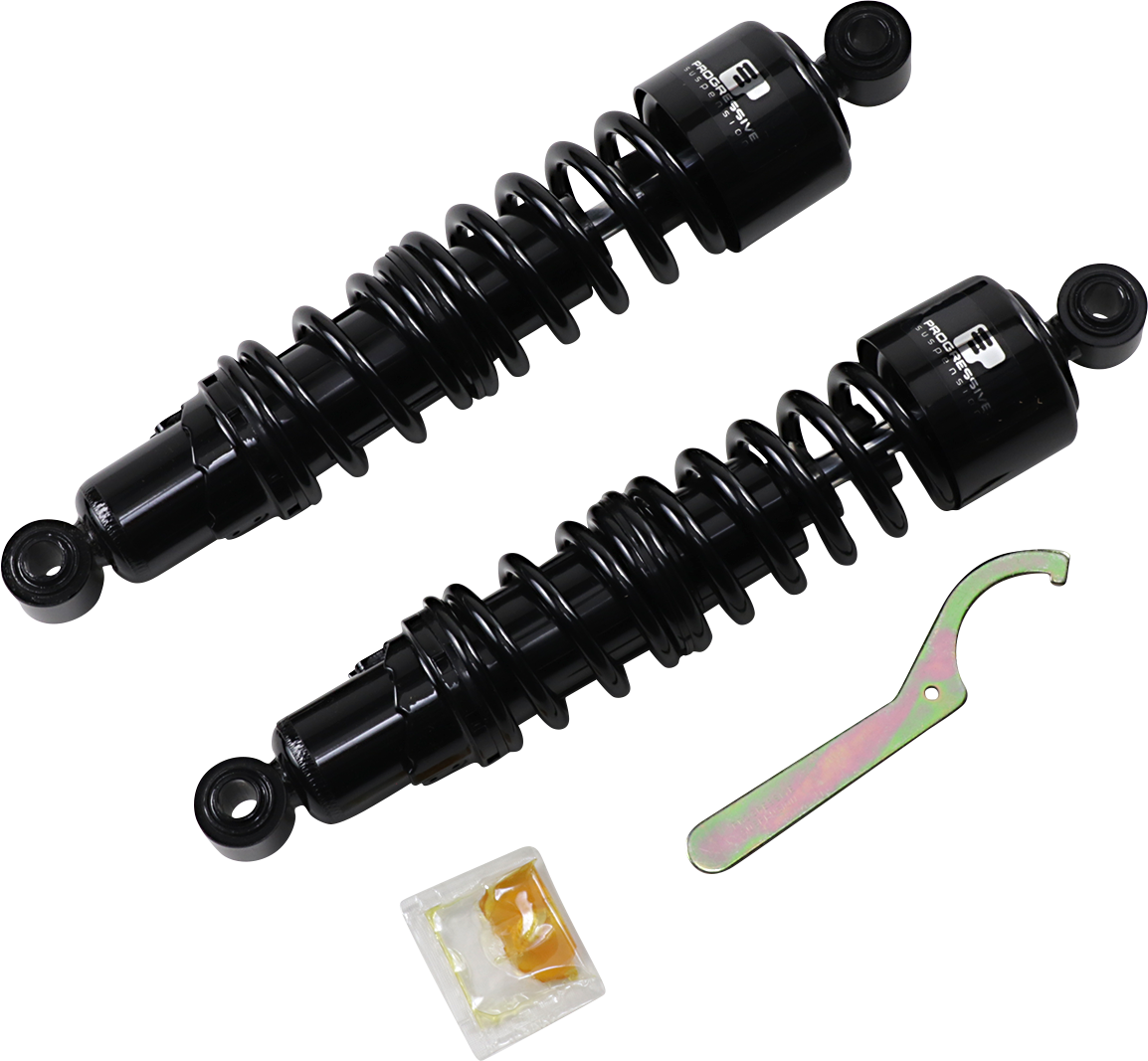

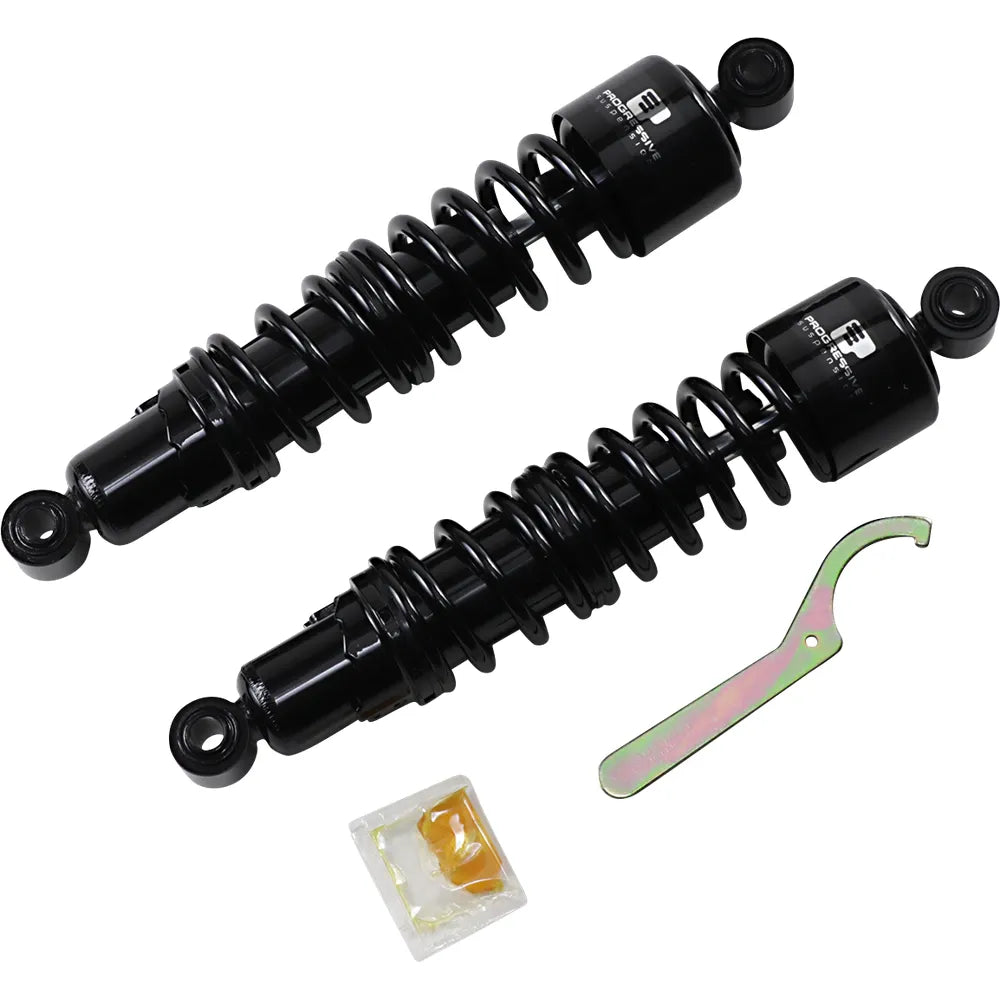

412 Series Shock - 13" - Standard - Black - FXD

Caracteristicas:

Designed specifically for Harley models

The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance

A five position cam style spring load preload adjuster lets you easily dial in your ride

Some or all shocks listed have TüV approval. Refer to most recent TüV certificate for current listing

All shocks are measured center-of-eyelet to center-of-eyelet.

When installing shocks on 1986-2015 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.

A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.

A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.

Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.

Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.

Peso: 10.95
Alto: 3.6
Largo: 16.91
Ancho: 6.64
Aditamentos:

Super Glide FXD : 1997-1995-1999-2000-2001-2002-1998-1996-2003-2004-2005-2006

Dyna Daytona FXDB : 1992

Dyna Glide Custom FXDC : 1992

Super Glide EFI FXDI : 2006-2010-2005-2007-2009-2004-2008

Super Glide Custom EFI FXDCI : 2009-2005-2008-2011-2012-2013-2006-2014-2007-2010

Street Bob FXDB : 2007-2006-2015-2012-2017-2008-2009-2010-2011-2013-2014-2016

Dyna Sturgis FXDB : 1991

Fat Bob FXDF : 2009-2010-2011-2008-2012-2013-2015-2017-2014-2016

Super Glide FXD35 : 2006

Low Rider FXDL : 1993-1994-1997-1999-2001-2004-2006-1996-1998-2002-2005-1995-2000-2003

Low Rider EFI FXDL : 2005-2009-2008-2015-2017-2004-2006-2007-2014-2016

Wide Glide FXDWG : 1995-2003-2005-2006-1994-1997-1999-2001-1993-1996-1998-2000-2002-2004

Wide Glide EFI FXDWGI : 2000-2007-2010-2016-2002-2003-2004-2006-2008-2015-2001-2005-2011-2013-2014-2012-2017

Super Glide Custom FXDC : 2005

Dyna Convertible FXDS-CONV : 1998-1999-1995-1996-1997-2000

Super Glide Sport FXDX : 1999

Low Rider S FXDLS : 2017-2016

Specs:Damping Method: Gas Charged
Extended Length: 343,00 mm (13,50")
Mounting Position: Rear
Reservoir Location: Internal
Color/Finish: Black
Duty: Standard
Extended Length: 13.50"
Material: Steel
Model: 412 Series
Product Name: Shock Absorber
Progressive Spring Rate: -
Units: Pair
Riding Style: Street
Type: Coilover Monotube
Progressive Spring Rate: -
Progressive Spring Rate: -
Adjustment Style: Automatic
Extended Length: 343.00 mm
Spring Type: Single Progressive Rate
