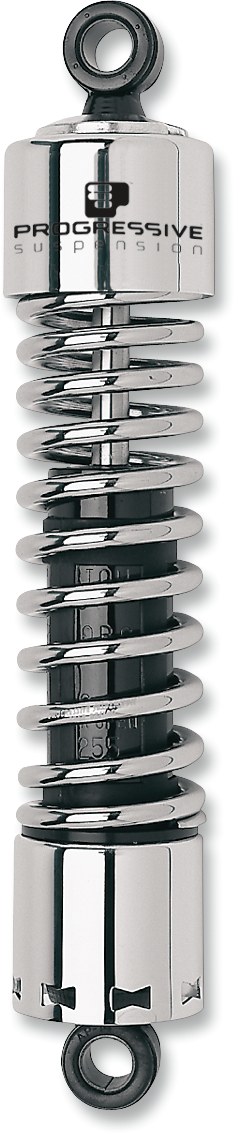

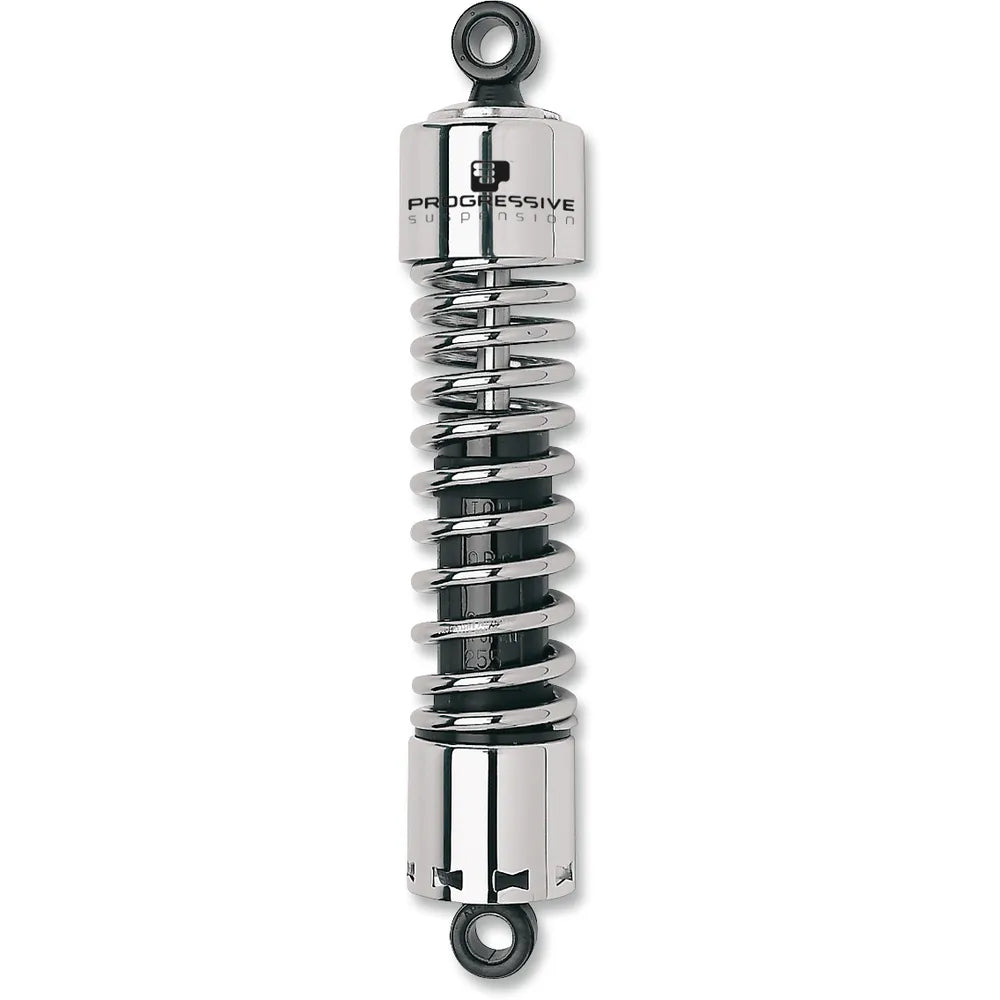

412 Series Shock - 13" - Standard - Chrome - H-D94988859

Caracteristicas:

Designed specifically for Harley models

The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance

A five position cam style spring load preload adjuster lets you easily dial in your ride

Some or all shocks listed have TüV approval. Refer to most recent TüV certificate for current listing

All shocks are measured center-of-eyelet to center-of-eyelet.

When installing shocks on 1986-2015 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.

A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.

A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.

Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.

Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.

Peso: 10.15
Alto: 3.98
Largo: 17.0
Ancho: 6.83
Aditamentos:

Super Glide FXR : 1988-1989-1987-1994-1991-1990-1992-1993

Sport Glide FXRT : 1990-1992-1989-1993-1987-1991-1988-1984-1983

Low Rider Chrome FXRC : 1987

Low Rider Convertible FXRS-CONV : 1990-1991-1993-1992

Low Rider Sport FXRS-SP : 1991-1988-1989-1992-1993-1990-1987

Roadster 1000 XLS : 1982-1979-1980-1981-1983-1985-1984

1200 Custom XLC : 2002-1996-1999-1998-2000-2001-2003-1997

1200 Sport XLS : 1997-1998-1999-2001-2002-1996-2000-2003

883 Custom XLC : 2003-2000-2002-1999-2001

Sportster 1200 XLH : 1989-1988-1999-2000-1993-1994-1996-2001-1990-1991-1992-1997-2002-1995-1998-2003

883 Roadster XLR : 2002-2003

Sportster 883 XLH : 1986-1987-1994-1990-1991-1992-1997-2002-1988-1989-1996-2000-2003-1995-1999-2001-1993-1998

883 Hugger XLH : 1987-1990-1988-1991-1989-1992-1996-1993-1995-1998-2000-2002-2003-1999-2001-1994-1997

883 Deluxe XLH : 1989-1990-1994-1986-1988-1993-1987-1995-1991-1992

Sportster 1000 XLH : 1979-1981-1980-1982-1983-1984-1985

Sportster 1100 XLH : 1986-1987

Café Racer XLCR : 1978-1977-1979

Sportster 1000 XLX : 1983-1985-1984

Sportster 1000 XR : 1984-1983-1985

Sportster 1000 XLCH : 1979

Low Rider Custom FXLR : 1987-1993-1988-1989-1992-1991-1990-1994

Low Rider FXRS : 1991-1990-1987-1993-1988-1992-1989

Sportster 750 XR : 1985-1980-1979-1984-1983-1981-1982

1200 Custom EFI XLC : 2003-2002

Super Glide II FXR : 1982-1983

Low Glide FXRS : 1984

Specs:Color/Finish: Chrome
Damping Method: Gas Charged
Progressive Spring Rate: 1.35 kg/mm - 2.15 kg/mm
Reservoir Location: Internal
Riding Style: Street
Color/Finish: Black
Material: Steel
Product Name: Shock Absorber
Progressive Spring Rate: 75.00 lb/in - 120.00 lb/in
Units: Pair
Adjustment Style: Automatic
Duty: Standard
Extended Length: 13.00"
Spring Type: Single Progressive Rate
Model: 412 Series without Covers
Mounting Position: Rear
Type: Coilover Monotube
