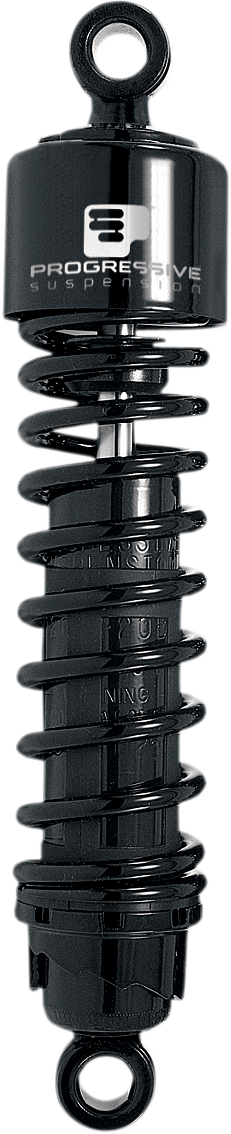

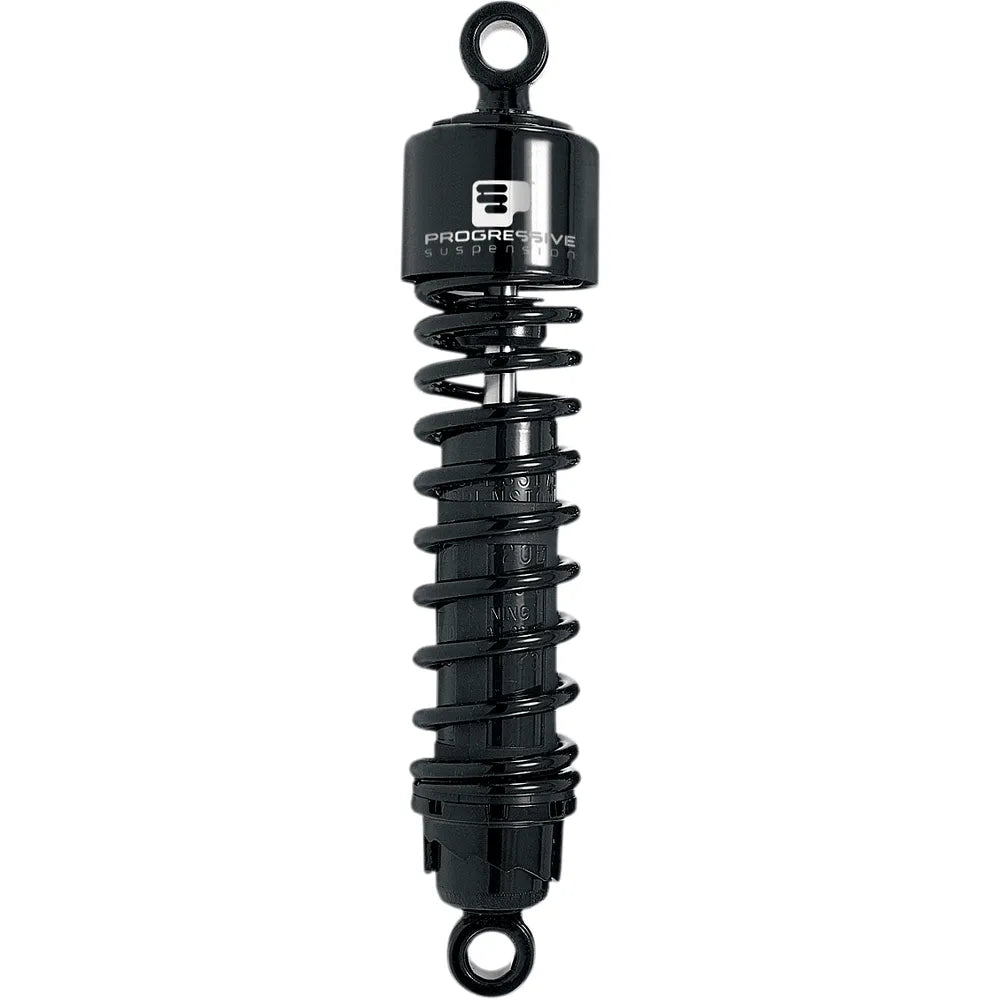

412 Series Shock - 14.25" - Standard - Black - H-D

Caracteristicas:

Designed specifically for Harley models

The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance

A five position cam style spring load preload adjuster lets you easily dial in your ride

Some or all shocks listed have TüV approval. Refer to most recent TüV certificate for current listing

All shocks are measured center-of-eyelet to center-of-eyelet.

When installing shocks on 1986-2015 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.

A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.

A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.

Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.

Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.

Peso: 10.15
Alto: 3.94
Largo: 16.99
Ancho: 6.72
Aditamentos:

Sport Glide FXRT : 1988-1989-1991-1990-1992-1987-1993-1983-1984

Low Rider Sport FXRS-SP : 1989-1993-1988-1991-1990-1992-1987

Super Glide FXR : 1987-1990-1992-1988-1989-1991-1993-1994

Low Rider Convertible FXRS-CONV : 1992-1991-1990-1993

Low Rider Chrome FXRC : 1987

Roadster 1000 XLS : 1983-1984-1982-1985-1979-1980-1981

1200 Custom XLC : 2002-1997-1998-2000-2001-2003-1996-1999

1200 Sport XLS : 1996-2000-2003-1998-1999-2001-2002-1997

883 Custom XLC : 2003-2001-1999-2000-2002

Sportster 1200 XLH : 1989-1990-1991-1992-1997-2002-1996-2001-1988-1999-2000-1993-1994-1995-1998-2003

Sportster 883 XLH : 1986-1987-1988-1994-1995-1999-2001-1990-1991-1992-1997-2002-1993-1998-1989-1996-2000-2003

883 Roadster XLR : 2003-2002

883 Hugger XLH : 1995-1998-2000-2002-2003-1993-1994-1997-1996-1999-2001-1987-1990-1989-1992-1988-1991

883 Deluxe XLH : 1986-1988-1993-1991-1992-1987-1995-1989-1990-1994

Sportster 1000 XLH : 1979-1980-1982-1984-1985-1981-1983

Sportster 1000 XLX : 1984-1983-1985

Sportster 1000 XR : 1983-1984-1985

Sportster 1100 XLH : 1986-1987

Café Racer XLCR : 1978-1977-1979

Sportster 1000 XLCH : 1979

Low Rider Custom FXLR : 1989-1992-1991-1990-1994-1987-1993-1988

Low Rider FXRS : 1992-1989-1991-1990-1987-1993-1988

Sportster 750 XR : 1985-1980-1979-1983-1981-1982-1984

1200 Custom EFI XLC : 2002-2003

Super Glide II FXR : 1982-1983

Low Glide FXRS : 1984

Specs:Color/Finish: Black
Material: Steel
Model: 412 Series without Covers
Units: Pair
Damping Method: Gas Charged
Duty: Standard
Extended Length: 14.25"
Product Name: Shock Absorber
Progressive Spring Rate: 1.60 kg/mm - 2.30 kg/mm
Riding Style: Street
Adjustment Style: Automatic
Reservoir Location: Internal
Spring Type: Single Progressive Rate
Mounting Position: Rear
Progressive Spring Rate: 90.00 lb/in - 130.00 lb/in
Type: Coilover Monotube
