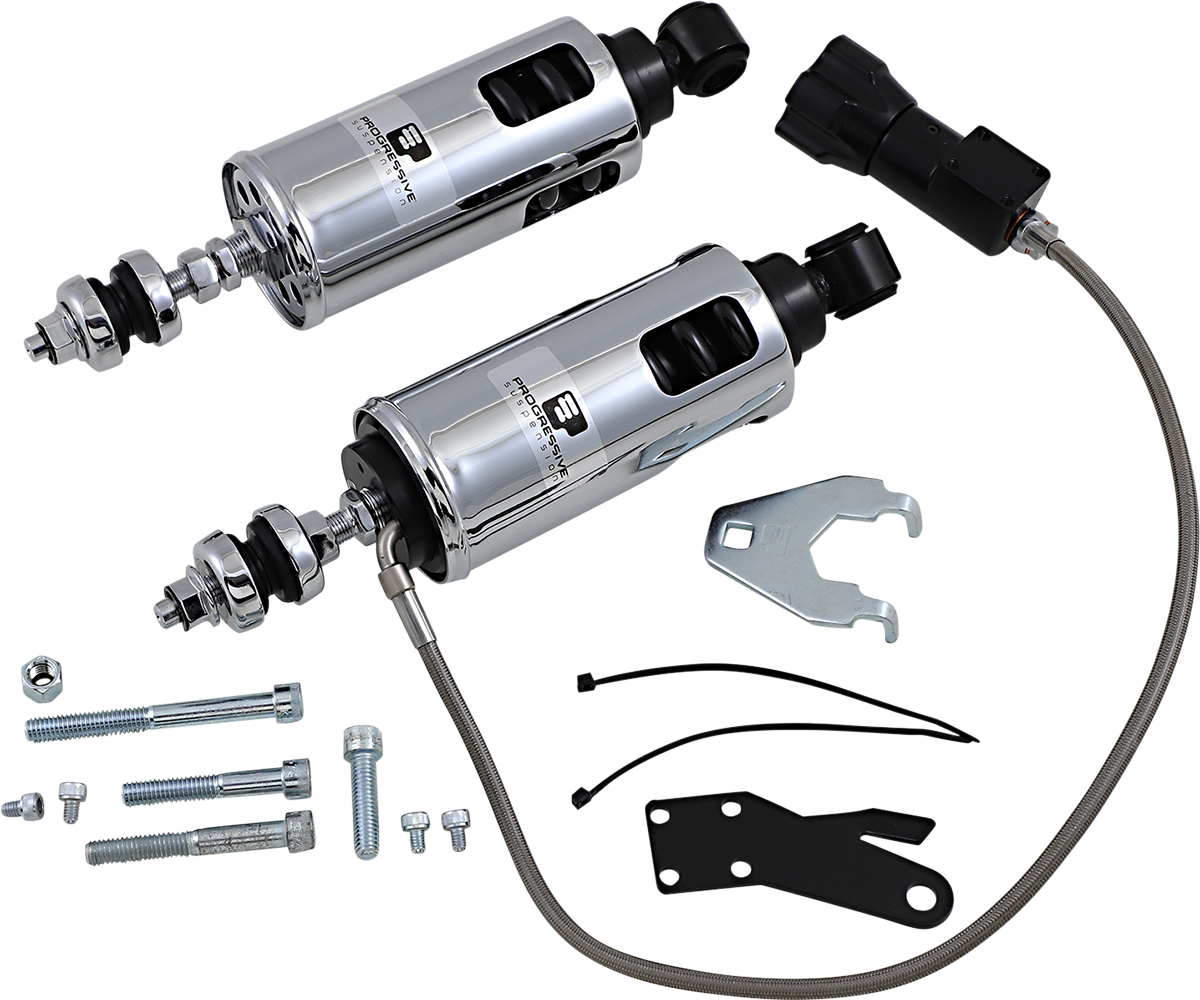

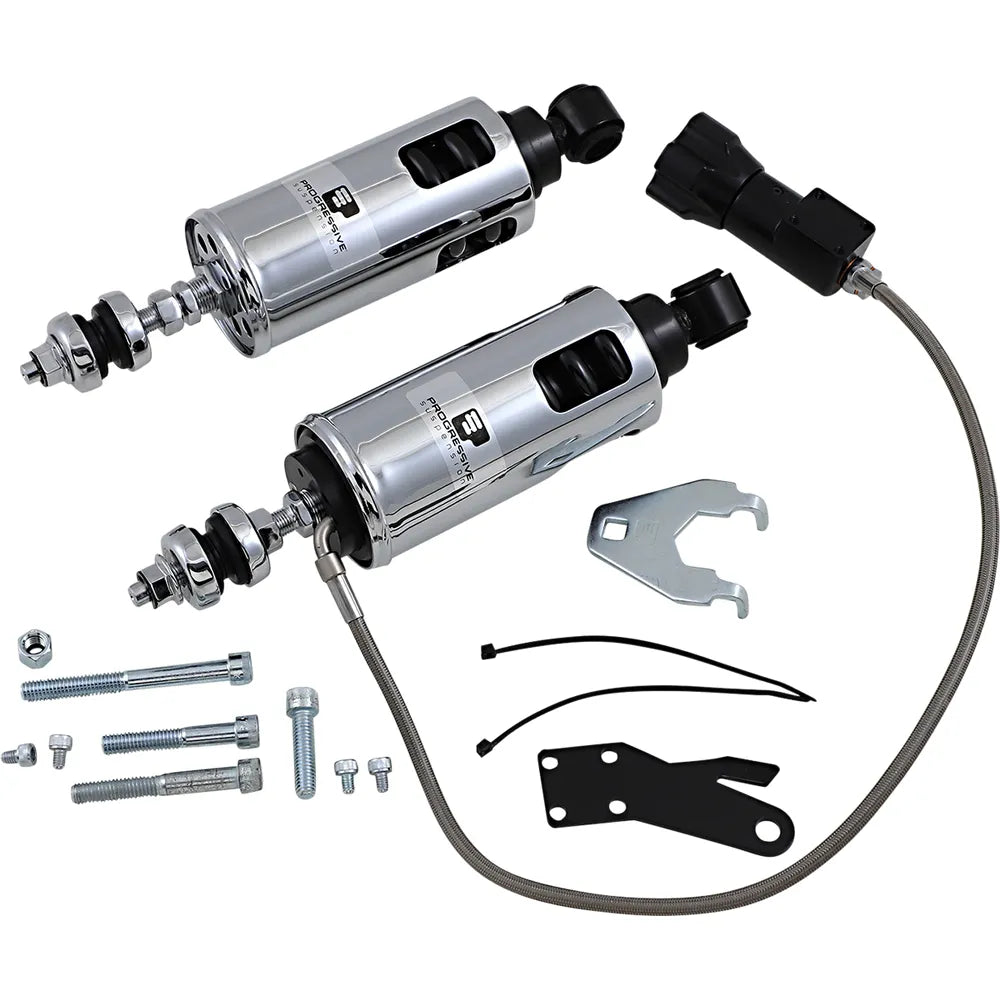

422 Series Shocks with Rap - Chrome - Heavy-Duty

Caracteristicas:

The Softail chassis has long been a challenge as the shocks are hidden under the frame which makes common adjustments difficult

The RAP (Remote Adjustable Preload) system allows for easy tuning of the shocks to account for changing loads or the addition of a passenger and is conveniently located behind the left passenger peg

Simply turn the knob in either direction to set the spring preload

Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues such as, swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.

Heavy Duty Applications are recommended for bikes operating at or near the manufacturer's maximum load rating over 50% of the time.

Peso: 13.6
Alto: 5.03
Largo: 13.3
Ancho: 10.55
Aditamentos:

Softail Springer FXSTS : 2002-2005-2004-2000-2003-2001-2006

Softail Standard FXST : 2001-2004-2003-2005-2006-2002-2000

Softail Springer EFI FXSTSI : 2004-2005-2003-2002-2006-2001

Softail Night Train EFI FXSTBI : 2007-2006-2001-2002-2003-2004-2005-2008-2009

Softail Custom EFI FXSTC : 2008-2010-2007-2009

Softail Standard EFI FXSTI : 2005-2004-2001-2002-2003-2006-2007-2011-2008-2009-2010-2012

Softail Night Train FXSTB : 2000-2006-2005-2003-2002-2004-2001

Softail Springer Classic EFI FLSTSCI : 2007-2006-2005

Softail Springer Classic FLSTSC : 2005-2006

Softail Heritage EFI FLSTI : 2006

Softail Fat Boy EFI FLSTFI : 2008-2013-2010-2007-2009-2002-2006-2003-2014-2011-2012-2005-2004-2015-2016-2017

Softail Deluxe EFI FLSTNI : 2009-2010-2008-2011-2012-2014-2007-2015-2013-2006-2005-2016-2017

Softail Heritage Classic EFI FLSTCI : 2008-2010-2006-2001-2009-2005-2014-2003-2011-2004-2002-2007-2013-2012-2015-2016-2017

Softail Deuce FXSTD : 2000-2006-2005-2002-2003-2004-2001

Softail Deuce EFI FXSTDI : 2007-2005-2006-2002-2004-2003-2001

Softail Heritage Classic FLSTC : 2002-2006-2001-2000-2005-2003-2004

Softail Rocker C FXCWC : 2010-2008-2011-2009

Softail Fat Boy FLSTF : 2004-2001-2003-2002-2005-2006-2000

Softail Heritage Springer EFI FLSTSI : 2001-2002-2003

Softail Heritage Springer FLSTS : 2001-2002-2003-2000

Fat Boy Lo FLSTFB : 2013-2011-2012-2010-2014-2015-2016-2009

Softail Rocker FXCW : 2009-2008-2010

Softail Cross Bones FLSTSB : 2009-2010-2011-2008

Breakout FXSB : 2013-2014-2015-2016-2017

Softail Slim FLS : 2014-2015-2012-2013-2016-2017

Blackline FXS : 2013-2012-2011

15th Anniversary Fat Boy FLSTF : 2005

Softail Heritage FLST : 2006

Softail Deluxe FLSTN : 2005-2006

Fat Boy S FLSTFBS : 2016-2017

Softail Slim S FLSS : 2016-2017

Specs:Damping Method: Gas Charged
Duty: Heavy Duty
Model: 422 Series
Mounting Position: Rear
Riding Style: Street
Type: Coilover Monotube
Color/Finish: Show Chrome
Product Name: Shock Absorber
Reservoir Location: Internal
Units: Pair
Linear Spring Rate: 1117.00 lb/in
Spring Type: Single Linear Rate
