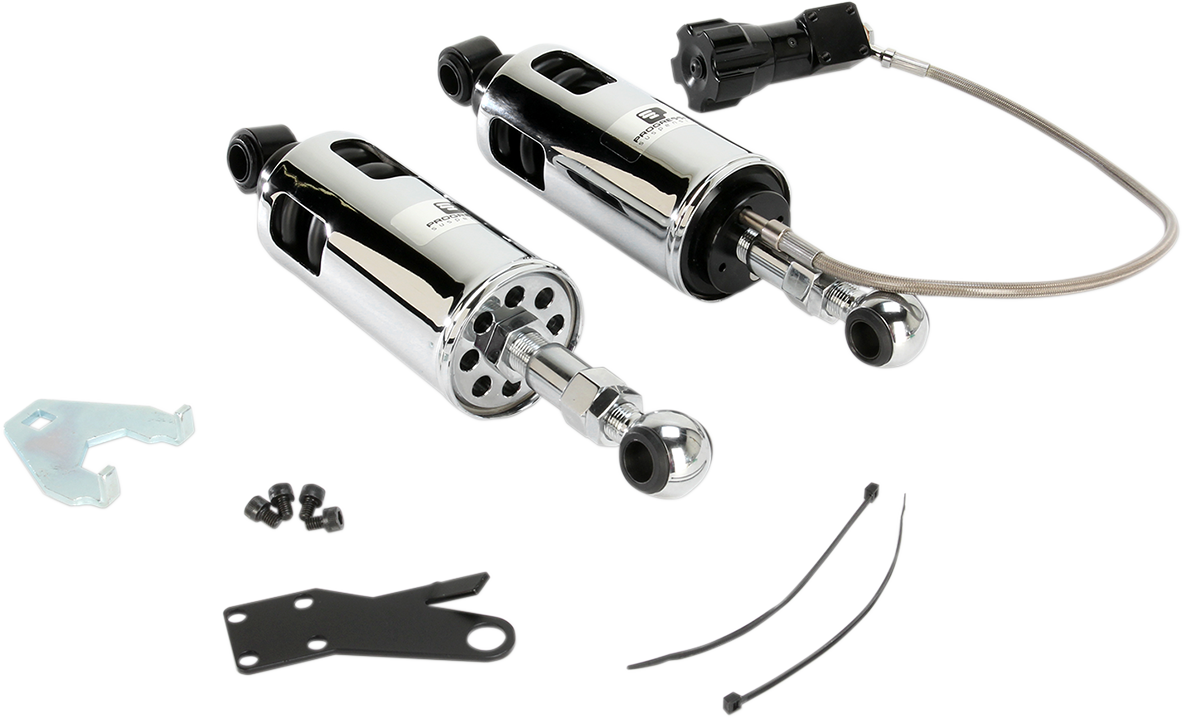

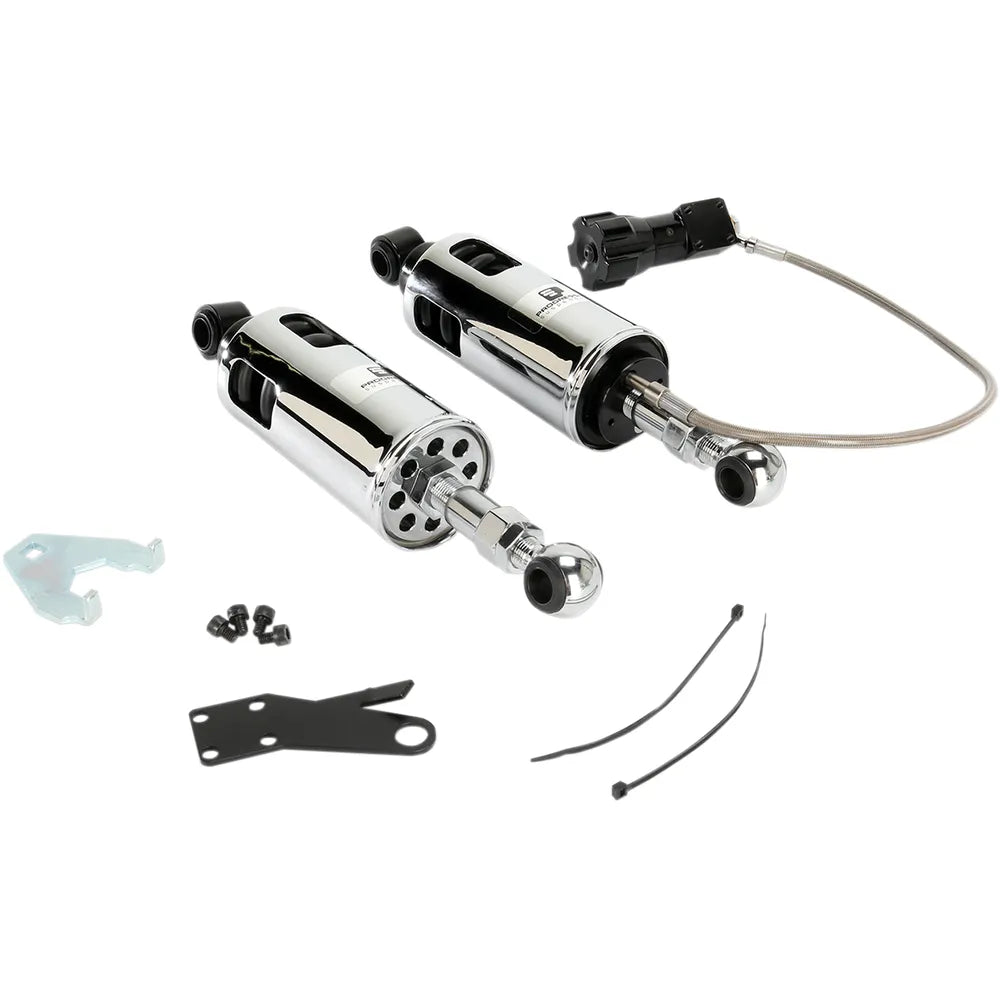

422 Series Shocks with Rap - Chrome - Standard

Caracteristicas:

The Softail chassis has long been a challenge as the shocks are hidden under the frame which makes common adjustments difficult

The RAP (Remote Adjustable Preload) system allows for easy tuning of the shocks to account for changing loads or the addition of a passenger and is conveniently located behind the left passenger peg

Simply turn the knob in either direction to set the spring preload

Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues such as, swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.

Heavy Duty Applications are recommended for bikes operating at or near the manufacturer's maximum load rating over 50% of the time.

Peso: 13.2
Alto: 5.21
Largo: 13.24
Ancho: 10.51
Aditamentos:

Softail Springer FXSTS : 1999-1998-1991-1992-1997-1990-1993-1994-1996-1995-1989

Softail Night Train FXSTB : 1999

Softail Standard FXST : 1990-1992-1991-1993-1989-1994-1997-1996-1999-1995-1998

Softail Custom FXSTC : 1991-1998-1999-1994-1992-1995-1996-1990-1997-1993-1989

Softail Bad Boy FXSTSB : 1995-1996-1997

Softail Heritage Classic FLSTC : 1995-1990-1993-1997-1994-1992-1989-1996-1991-1998-1999

Softail Fat Boy FLSTF : 1995-1997-1998-1993-1996-1990-1991-1992-1999-1994

Softail Heritage Springer FLSTS : 1997-1998-1999

Softail Nostalgia FLSTN : 1993

Softail Heritage FLST : 1989-1990

Softail Heritage Special FLSTN : 1996-1994-1995

Specs:Spring Type: Single Linear Rate
Damping Method: Gas Charged
Duty: Standard
Model: 422 Series
Mounting Position: Rear
Riding Style: Street
Type: Coilover Monotube
Color/Finish: Show Chrome
Linear Spring Rate: 950.00 lb/in
Product Name: Shock Absorber
Reservoir Location: Internal
Units: Pair
