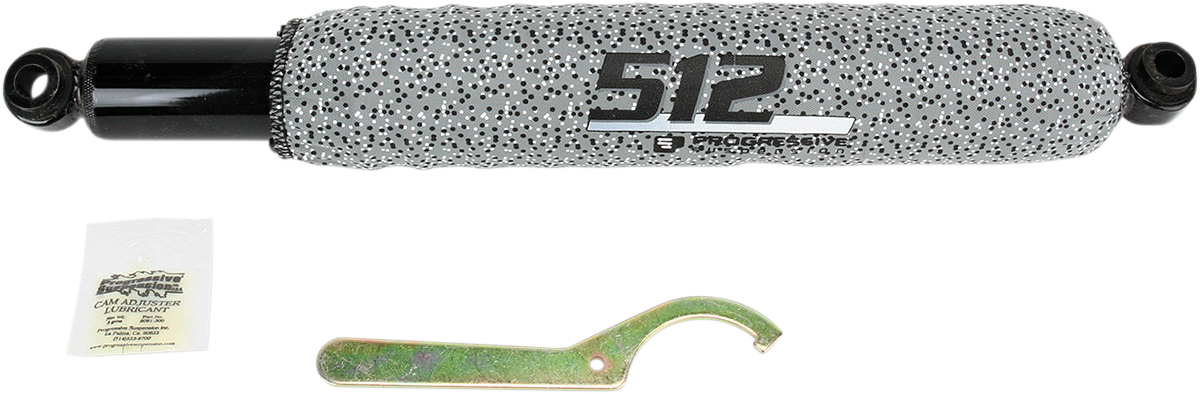

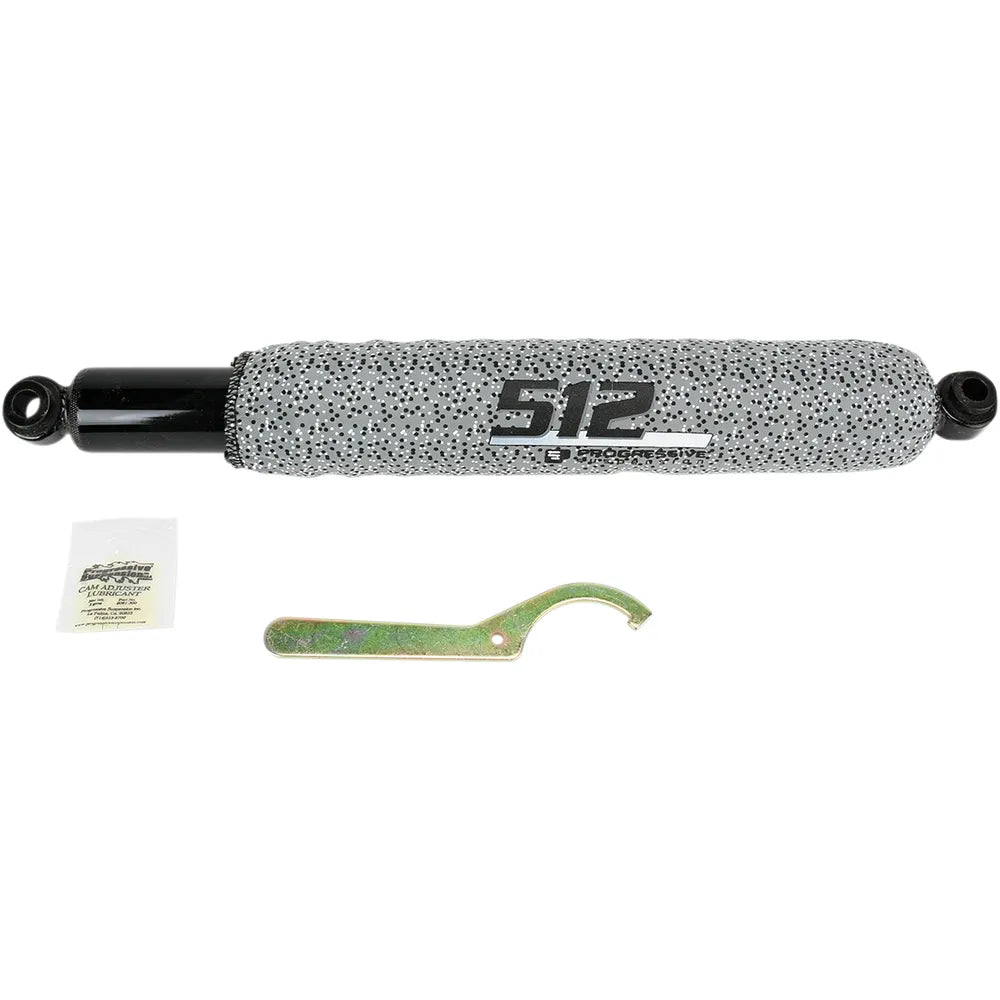

512 Series Shock - Rear

Caracteristicas:

Increase ground clearance and wheel travel 1"-2" on most models

Rugged double-steel-wall construction

Progressive rate springs for comfortable ride and improved load-carrying capacity

Five-position spring pre-load adjustment for varying loads

Gas charged for fade-free operation

Durable fabric Shock Sox are included to protect shocks from rock, sand and mud damage

Shock Sox are easily removable with hook-and-loop fasteners for cleaning and adjustments

Not compatible with lift kits

Peso: 7.0
Alto: 4.44
Largo: 21.65
Ancho: 9.05
Aditamentos:

KVF 400 Prairie 4x4 : 1998-1997-2001-2002-1999-2000-2008-2009-2013-2004-2005-2010-2003-2006-2007-2011-2012

KVF 300 Prairie 4x4 : 2000-1999-2002-2001

KVF 300 Prairie 2x4 : 2000-1999-2002-2001

KVF 360 Prairie 2x4 : 2003-2005-2006-2008-2004-2007-2010-2011-2009-2013-2012

KVF 360 Prairie 4x4 : 2007-2003-2004-2005-2006-2008-2011-2009-2010-2013-2012

KVF 400 Prairie 2x4 : 2000-2002-2001-1997-1999-1998-2007-2008-2005-2006-2010-2004-2011-2003-2009-2012-2013

KVF 300 Prairie : 2001-2000-2002-1999

KVF 400 A Prairie 4x4 : 1997-1999-2001-1998-2002-2000

KVF 400 B Prairie 2x4 : 2001-2002-1998-1999-2000-1997

KVF 400 B Prairie 4x4 : 2002-2001-1997-1998-1999-2000

KVF 400 C Prairie 4x4 : 1998-2000-1997-1999-2001-2002

KVF 400 D Prairie 2x4 : 2000-1997-1999-2001-1998-2002

KVF 400 D Prairie 4x4 : 2001-2002-1998-1997-1999-2000

Specs:Color/Finish: Black
Damping Method: Gas Charged
Riding Style: ATV
Type: Coilover Twin-Tube
Units: Each
Material: Steel
Progressive Spring Rate: 2.15 kg/mm - 3.00 kg/mm
Spring Type: Single Progressive Rate
Extended Length: 17.50"
Mounting Position: Rear
Progressive Spring Rate: 120.00 lb/in - 170.00 lb/in
Adjustment Type: Adjustable Rebound Damping
Color/Finish: Gray
Model: 512 Series
Product Name: Shock Absorber
Reservoir Location: Internal
