Cam - 551 Series - Gear Drive

Caracteristicas:

Camshaft gear drive kits increase valve timing accuracy by eliminating timing chain lash and loosely-fit stock chain drive

Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes; as a result, higher cam lifts are possible with the gear drive kit

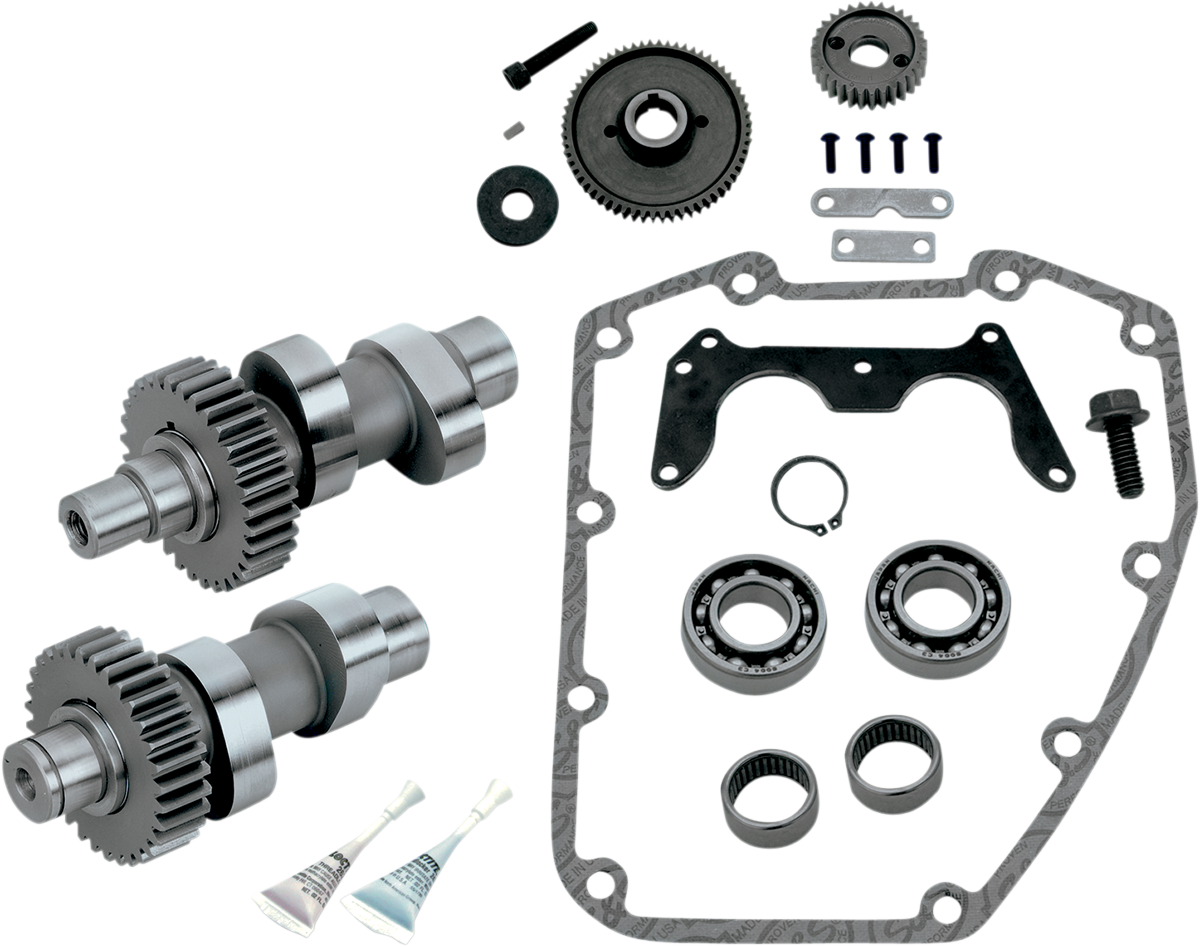

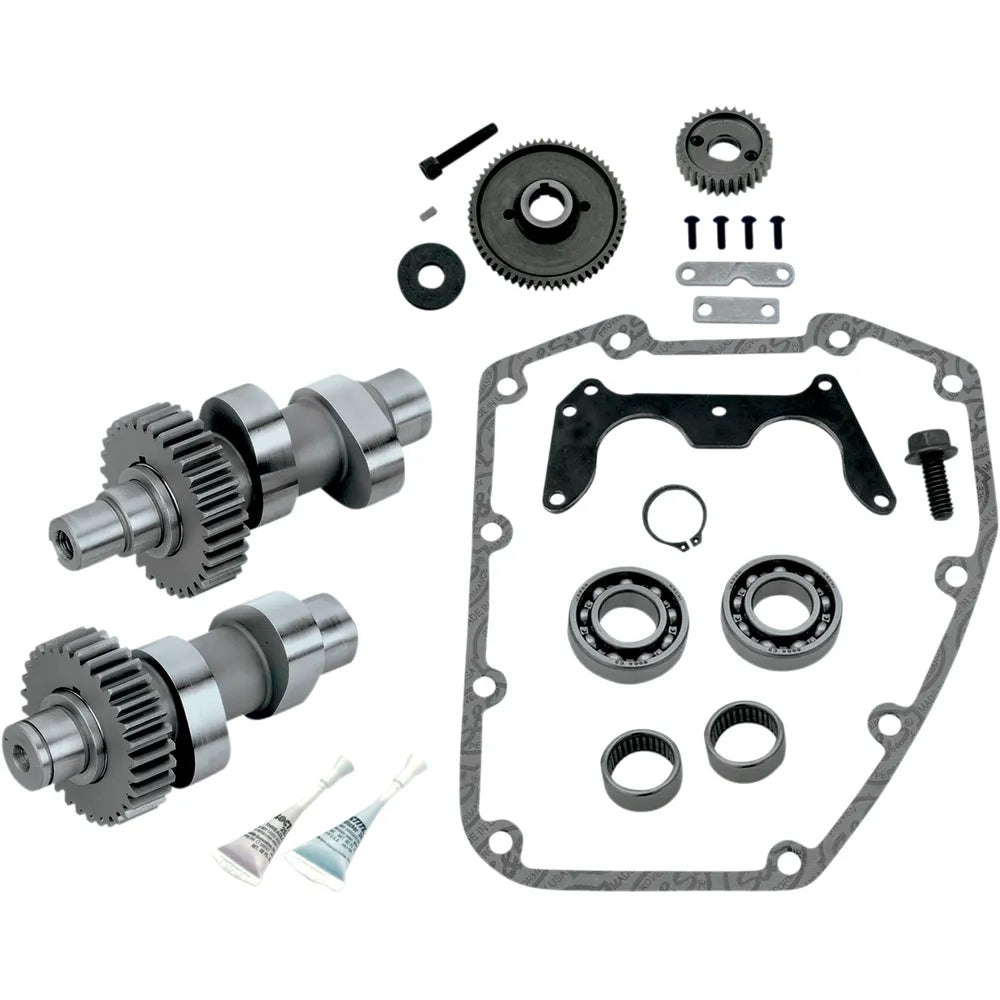

Kits include cams, inner gears, outer drive gears, inner and outer bearings, gasket and instructions

Material must be removed from the inner surface of the stock gear cover to install S&S gear drive cams

A hydraulic press and other professional-level tools are required to install these kits

Cam bearings and gaskets must be replaced when installing new cams

Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.

Due to the inherent characteristics of gear drives, you may experience more valve train noise.

Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.

Designed as bolt-in cam for touring bikes with compression ratio between 9:1 and 9:9

More power across the rpm range, with improved low and midrange torque

Can be used with stock pushrods, springs and lifters

Strongest from 1,000-4,000 rpm

Made in the U.S.A.

Peso: 6.07
Alto: 4.96
Largo: 11.85
Ancho: 9.25
Aditamentos:

Softail Heritage Classic EFI FLSTCI : 2001-2002-2003-2004-2005-2006

Road King Classic EFI FLHRC : 2004-2005-2001-2002-2000-1999-2003-2006

Electra Glide Classic EFI FLHTCI : 2000-2005-2004-2001-2006-2003-1999-2002

Wide Glide FXDWG : 2005-2003-2001-2002-2000-2004-1999

Super Glide FXD : 2002-2001-2000-2005-2003-2004-1999

Electra Glide Standard FLHT : 2000-2004-2006-2003-2001-2005-2002-1999

Super Glide Sport EFI FXDXI : 2005-2004

Softail Springer EFI FXSTSI : 2004-2005-2006-2003-2002-2001

Softail Night Train FXSTB : 2005-2001-2006-2003-2004-2000-2002

Electra Glide Classic FLHTC : 2004-1999-2005-2003-2000-2001-2002

Road King FLHR : 2002-2001-2000-2006-1999-2005-2003-2004

Road King Custom FLHRS : 2005-2006-2004

Softail Standard EFI FXSTI : 2004-2006-2001-2005-2002-2003

Super Glide T-Sport FXDXT : 2003-2002-2001

Softail Heritage EFI FLSTI : 2006

Softail Springer Classic FLSTSC : 2005-2006

Electra Glide Ultra Classic EFI FLHTCUI : 2006-2005-2000-2003-2004-2002-2001-1999

Road Glide FLTR : 2000-1999-2001-2002

Low Rider FXDL : 2004-2001-2005-2002-2003-2000-1999

Super Glide Sport FXDX : 2002-2005-2003-2000-2004-2001-1999

Softail Springer FXSTS : 2001-2003-2005-2006-2004-2002-2000

Super Glide EFI FXDI : 2005-2004

Softail Night Train EFI FXSTBI : 2001-2002-2003-2004-2005-2006

Super Glide Custom EFI FXDCI : 2005

Street Glide FLHX : 2006

Electra Glide Ultra Classic FLHTCU : 1999

Road King Custom EFI FLHRS : 2006-2005-2004

Dyna Convertible FXDS-CONV : 2000-1999

Softail Springer Classic EFI FLSTSCI : 2005-2006

Softail Standard FXST : 2002-2001-2003-2000-2005-2006-2004

Softail Heritage Classic FLSTC : 2006-2001-2000-2002-2005-2003-2004

Softail Deuce FXSTD : 2005-2000-2006-2002-2003-2004-2001

Softail Heritage Springer EFI FLSTSI : 2002-2001-2003

Softail Fat Boy FLSTF : 2002-2005-2006-2004-2001-2003-2000

Softail Deuce EFI FXSTDI : 2002-2004-2005-2006-2003-2001

Road King EFI FLHR : 2002-2003-2005-2006-2004-1999-2000-2001

Softail Heritage Springer FLSTS : 2001-2002-2003-2000

Road Glide EFI FLTR : 2003-1999-2000-2001-2002-2005-2004-2006

Low Rider EFI FXDL : 2004-2005

Wide Glide EFI FXDWGI : 2005-2004

15th Anniversary Fat Boy FLSTF : 2005

Softail Deluxe EFI FLSTNI : 2006-2005

Street Glide EFI FLHX : 2006

Softail Fat Boy EFI FLSTFI : 2002-2006-2003-2005-2004

Super Glide Custom FXDC : 2005

Softail Heritage FLST : 2006

Softail Deluxe FLSTN : 2005-2006

Electra Glide Standard EFI FLHTI : 2003-2004-2005-2006

Specs:Application: Intake
Exhaust Duration: 238°
Intake Duration: 216°
Intake Open: 17°
Type: Gear
Exhaust Close: 17°
Exhaust Lift at TDC: 0.170"
Exhaust Lift: 0.550"
Units: Kit
Application: Exhaust
Exhaust Lobe Centerline: 102°
Grind: 551 Series
Intake Close: 19°
Intake Lift at TDC: 0.178"
Exhaust Open: 41°
Intake Lift: 0.550"
Intake Lobe Centerline: 91°
Product Name: Cam Kit
Riding Style: Street
