Cam Chain - 509 Series

Caracteristicas:

Great low and mid-range torque

Lower lift allows them to be bolted into stock 96"-106" 2006 engines with stock valve springs

Strongest from 1,000-4,500 rpm

180 psi cranking compression; no need for compression releases

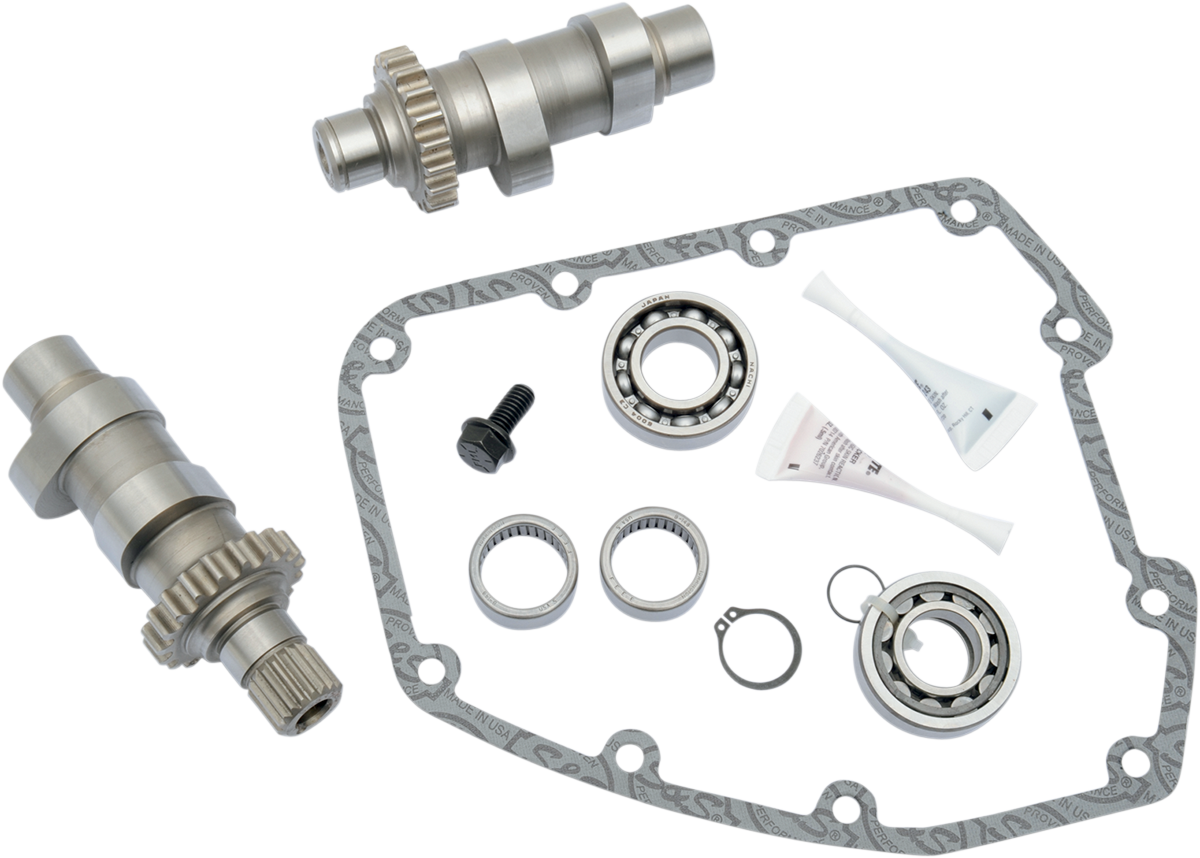

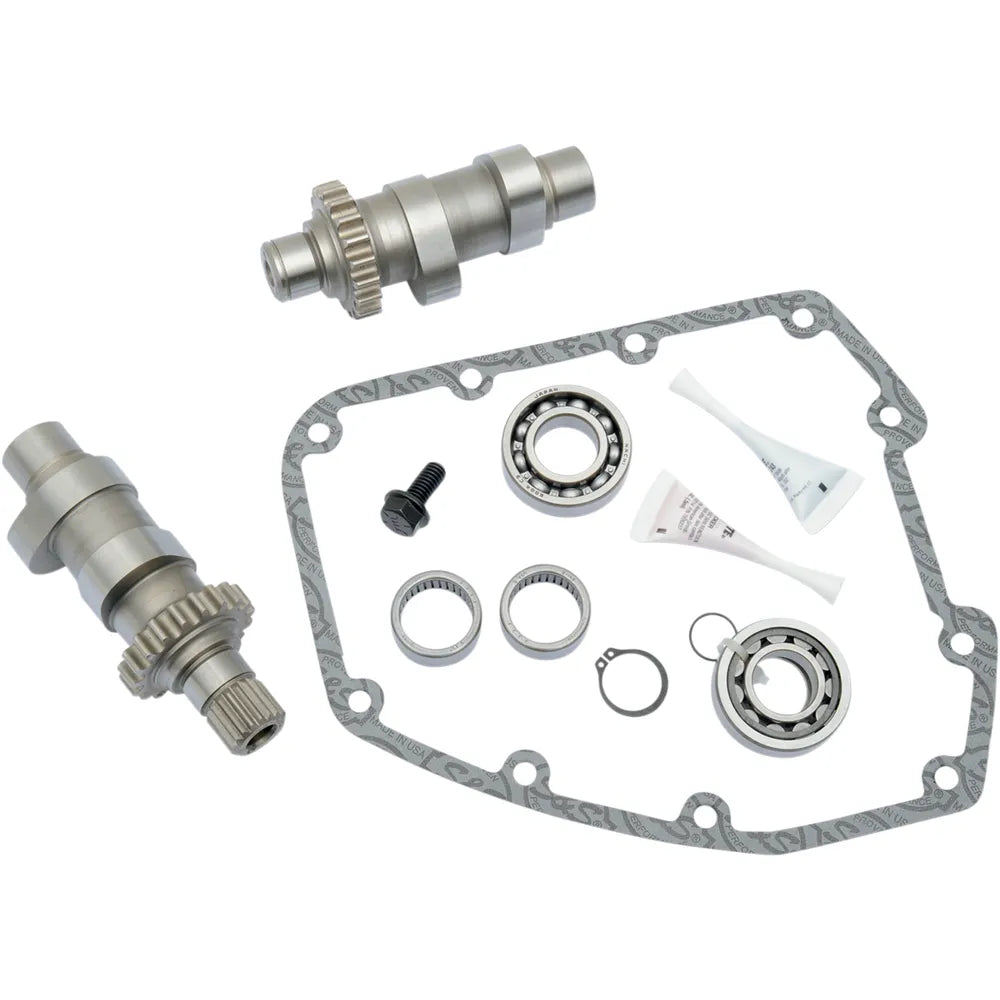

Included Items: (2) Chain drive cams (1) front, (1) rear, (2) 22 x28.5 x12 Needle bearings, (1) Large O-ring, (2) Small O-rings, (1) Retaining ring, (1) 20 x 42x 12 Bearing, (1) 20 x 42 x12 Bearing w/O-ring, (1) 5/16"-18 x 3/4" Flange hex head bolt, (1) Cam cover gasket, (1) 5ml Tube of loctite® 262, (1) 5ml Tube of loctite® 243, Instructions

Made in the U.S.A.

Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.Due to the inherent characteristics of gear drives, you may experience more valve train noise

If OES, 509 or 510C cams are used with the stock chain drive system in Twin Cam 88 engines, it is recommended to use cylinder heads with stock valve springs or performance valve springs with no more than 160 lb. of seat force. For more demanding applications, we recommend the S&S gear drive cams.

Peso: 4.15
Alto: 4.96
Largo: 11.61
Ancho: 9.44
Aditamentos:

Softail Heritage Classic EFI FLSTCI : 2002-2001-2005-2006-2004-2003

Electra Glide Standard FLHT : 2006-2003-2002-2001-2005-2000-2004-1999

Street Glide FLHX : 2006

Wide Glide FXDWG : 1999-2001-2002-2005-2003-2000-2004

Electra Glide Ultra Classic FLHTCU : 1999

Softail Night Train EFI FXSTBI : 2002-2003-2004-2005-2001-2006

Super Glide Sport EFI FXDXI : 2004-2005

Road King Classic EFI FLHRC : 1999-2002-2000-2004-2005-2001-2003-2006

Electra Glide Classic EFI FLHTCI : 1999-2004-2001-2006-2003-2000-2005-2002

Dyna Convertible FXDS-CONV : 1999-2000

Softail Night Train FXSTB : 2004-2000-2003-2005-2002-2001-2006

Road Glide FLTR : 2001-2002-1999-2000

Electra Glide Ultra Classic EFI FLHTCUI : 2000-2003-2005-2004-2002-2001-1999-2006

Super Glide Sport FXDX : 1999-2000-2004-2001-2003-2002-2005

Super Glide T-Sport FXDXT : 2001-2002-2003

Softail Springer EFI FXSTSI : 2006-2003-2002-2005-2004-2001

Road King FLHR : 1999-2005-2000-2006-2002-2003-2004-2001

Softail Springer FXSTS : 2006-2004-2001-2003-2005-2002-2000

Softail Standard EFI FXSTI : 2002-2003-2001-2005-2004-2006

Road King Custom EFI FLHRS : 2006-2005-2004

Super Glide Custom FXDC : 2005

Softail Heritage Classic FLSTC : 2003-2004-2002-2006-2001-2000-2005

Softail Heritage FLST : 2006

Softail Deuce FXSTD : 2001-2000-2006-2005-2002-2003-2004

Softail Deluxe FLSTN : 2005-2006

Softail Fat Boy FLSTF : 2000-2004-2001-2003-2002-2005-2006

Softail Fat Boy EFI FLSTFI : 2005-2004-2002-2006-2003

Road King EFI FLHR : 2005-2006-2004-2002-2003-1999-2000-2001

Softail Deuce EFI FXSTDI : 2001-2005-2006-2002-2004-2003

Wide Glide EFI FXDWGI : 2004-2005

Low Rider FXDL : 2003-2000-2005-2002-1999-2004-2001

Softail Springer Classic EFI FLSTSCI : 2005-2006

Super Glide EFI FXDI : 2005-2004

Softail Standard FXST : 2003-2000-2005-2006-2002-2001-2004

Softail Springer Classic FLSTSC : 2006-2005

Super Glide Custom EFI FXDCI : 2005

Electra Glide Classic FLHTC : 1999-2004-2005-2003-2000-2001-2002

Softail Heritage Springer EFI FLSTSI : 2001-2002-2003

Softail Heritage Springer FLSTS : 2001-2002-2003-2000

Road Glide EFI FLTR : 2003-1999-2000-2001-2002-2004-2005-2006

Low Rider EFI FXDL : 2004-2005

Super Glide FXD : 2002-2001-1999-2005-2003-2004-2000

Road King Custom FLHRS : 2005-2006-2004

Softail Heritage EFI FLSTI : 2006

15th Anniversary Fat Boy FLSTF : 2005

Softail Deluxe EFI FLSTNI : 2006-2005

Street Glide EFI FLHX : 2006

Electra Glide Standard EFI FLHTI : 2003-2004-2005-2006

Specs:Exhaust Lift: 0.509"
Intake Duration: 216°
Product Name: Cam Kit
Type: Chain
Intake Lift at TDC: 0.174"
Intake Open: 18°
Riding Style: Street
Application: Exhaust
Exhaust Close: 11°
Exhaust Duration: 237°
Application: Intake
Exhaust Lift at TDC: 0.140"
Exhaust Lobe Centerline: 107.5°
Exhaust Open: 46°
Grind: 509 Series
Intake Close: 18°
Intake Lift: 0.509"
Intake Lobe Centerline: 90°
Units: Kit
